LIQUID CRYSTAL DISPLAY (LCD)
id092200103500
Outline
• The LCD displays vehicle information in the instrument cluster.
Function/Construction
• The instrument cluster configures the indication of the LCD based on the signals sent via CAN communication from the related modules, and displays it.
Information displayed in LCD
-
• Information displayed in the LCD is listed in the following table. Refer to the referenced section for details of the displayed information.
|
Display information
|
Reference
|
|

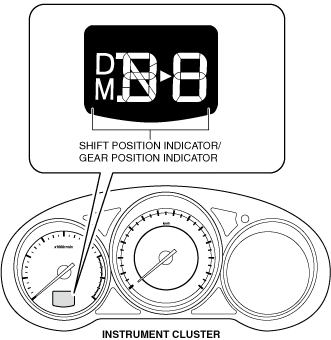

Shift position indicator/gear position indicator
|
|
