ON-BOARD DIAGNOSTIC SYSTEM [FRONT BODY CONTROL MODULE (FBCM)]

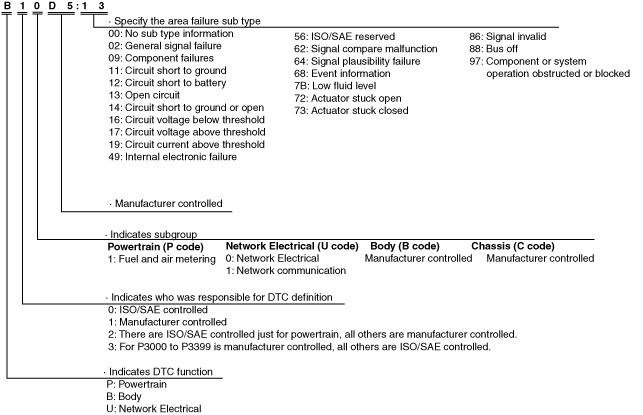

DTC No.	Warning/indicator light	Description	Fail-safe function	Drive cycle	Self test type^*1	Memory function
B1008:02	—	Windshield wiper control signal error	×	—	C, D	×
B1048:7B	—	Brake fluid level sensor circuit malfunction	—	—	C, D	×
B1087:88	—	LIN communication error	—	—	C, D	×
B1088:88	—	LIN communication error	×	—	C, D	×
B1092:11^*2	—	DRL relay circuit malfunction	—	—	C, D	×
B109A:12	—	Headlight HI relay circuit malfunction	—	—	C, D	×
B109A:14	—	Headlight HI relay circuit malfunction	—	—	C, D	×
B10AD:86	—	Error signal received from auto light sensor/rain sensor	—	—	C, D	×
B10AF:12	—	Blower relay circuit malfunction	—	—	C, D	×
B1142:13	—	IG1 relay circuit malfunction	—	—	C, D	×
B1143:13	—	IG2 relay control circuit malfunction	—	—	C, D	×
B11DB:86	—	Error signal received from current sensor	—	—	C, D	×
B1314:11	—	Illumination output circuit malfunction	×	—	C, D	×
B134D:02	—	Headlight control signal error	×	—	C, D	×
B13CF:19	—	IG2 power supply output circuit malfunction	×	—	C, D	×
B13D0:11	—	TNS (parking lights) circuit malfunction	×	—	C, D	×
B13D2:12^*3	—	Front fog light relay circuit malfunction	—	—	C, D	×
B13FE:12	—	Headlight LO relay No.1 circuit malfunction	—	—	C, D	×
B13FE:14	—	Headlight LO relay No.1 circuit malfunction	—	—	C, D	×
B141E:12	—	Headlight LO relay No.2 circuit malfunction	—	—	C, D	×
B1C84:12	—	Rear window defogger relay circuit malfunction	—	—	C, D	×
B1C84:14	—	Rear window defogger relay circuit malfunction	—	—	C, D	×
B1D06:11	—	Turn light (LH) circuit malfunction	×	—	C, D	×
B1D06:13	—	Turn light (LH) circuit malfunction	—	—	C, D	×
B1D07:11	—	Turn light (RH) circuit malfunction	×	—	C, D	×
B1D07:13	—	Turn light (RH) circuit malfunction	—	—	C, D	×
U0001:88	—	Module communication error (HS-CAN)	×	—	C, D	×
U0100:00	—	Communication error with PCM	×	—	C, D	×
U0101:00	—	Communication error with TCM	×	—	C, D	×
U0121:00	—	Communication error with DSC HU/CM	×	—	C, D	×
U0151:00	—	Communication error with SAS control module	×	—	C, D	×
U0155:00	—	Communication error with instrument cluster	×	—	C, D	×
U0214:00	—	Communication error with start stop unit	×	—	C, D	×
U0231:68	—	Communication error with auto light sensor/rain sensor	×	—	C, D	×
U023A:00	—	Communication error with forward sensing camera (FSC)	—	—	C, D	×
U0298:68	—	Communication error with DC-DC converter	—	—	C, D	×
U0338:09	—	Error light switch signal received from start stop unit	×	—	C, D	×
U0401:68	—	Error signal received from PCM	—	—	C, D	×
U053B:68	—	Error signal received from forward sensing camera (FSC)	—	—	C, D	×
U0599:68	—	Error signal received from DC-DC converter	—	—	C, D	×
U1007:68	—	Communication error with current sensor	—	—	C, D	×
U2005:68	—	Error vehicle speed signal received from PCM	—	—	C, D	×
U2100:00	—	Front body control module (FBCM) configuration error	—	—	C, D	×
U2101:00	—	Front body control module (FBCM) configuration error	—	—	C, D	×
U3000:49	—	Front body control module (FBCM) internal malfunction	×	—	C, D	×
U3000:56	—	Front body control module (FBCM) internal malfunction	×	—	C, D	×
U3003:16	—	Front body control module (FBCM) power supply voltage (B+ power supply) low input	—	—	C, D	×
U3003:17	—	Front body control module (FBCM) power supply voltage high input	—	—	C, D	×
U3006:62	—	Front body control module (FBCM) power supply voltage mismatch	—	—	C, D	×

DTC No.

Warning/indicator light

Description

Fail-safe function

Drive cycle

Self test type^*1

Memory function

B1008:02

—

Windshield wiper control signal error

—

C, D

B1048:7B

—

Brake fluid level sensor circuit malfunction

—

C, D

B1087:88

—

LIN communication error

—

C, D

B1088:88

—

LIN communication error

—

C, D

B1092:11^*2

—

DRL relay circuit malfunction

—

C, D

B109A:12

—

Headlight HI relay circuit malfunction

—

C, D

B109A:14

—

Headlight HI relay circuit malfunction

—

C, D

B10AD:86

—

Error signal received from auto light sensor/rain sensor

—

C, D

B10AF:12

—

Blower relay circuit malfunction

—

C, D

B1142:13

—

IG1 relay circuit malfunction

—

C, D

B1143:13

—

IG2 relay control circuit malfunction

—

C, D

B11DB:86

—

Error signal received from current sensor

—

C, D

B1314:11

—

Illumination output circuit malfunction

—

C, D

B134D:02

—

Headlight control signal error

—

C, D

B13CF:19

—

IG2 power supply output circuit malfunction

—

C, D

B13D0:11

—

TNS (parking lights) circuit malfunction

—

C, D

B13D2:12^*3

—

Front fog light relay circuit malfunction

—

C, D

B13FE:12

—

Headlight LO relay No.1 circuit malfunction

—

C, D

B13FE:14

—

Headlight LO relay No.1 circuit malfunction

—

C, D

B141E:12

—

Headlight LO relay No.2 circuit malfunction

—

C, D

B1C84:12

—

Rear window defogger relay circuit malfunction

—

C, D

B1C84:14

—

Rear window defogger relay circuit malfunction

—

C, D

B1D06:11

—

Turn light (LH) circuit malfunction

—

C, D

B1D06:13

—

Turn light (LH) circuit malfunction

—

C, D

B1D07:11

—

Turn light (RH) circuit malfunction

—

C, D

B1D07:13

—

Turn light (RH) circuit malfunction

—

C, D

U0001:88

—

Module communication error (HS-CAN)

—

C, D

U0100:00

—

Communication error with PCM

—

C, D

U0101:00

—

Communication error with TCM

—

C, D

U0121:00

—

Communication error with DSC HU/CM

—

C, D

U0151:00

—

Communication error with SAS control module

—

C, D

U0155:00

—

Communication error with instrument cluster

—

C, D

U0214:00

—

Communication error with start stop unit

—

C, D

U0231:68

—

Communication error with auto light sensor/rain sensor

—

C, D

U023A:00

—

Communication error with forward sensing camera (FSC)

—

C, D

U0298:68

—

Communication error with DC-DC converter

—

C, D

U0338:09

—

Error light switch signal received from start stop unit

—

C, D

U0401:68

—

Error signal received from PCM

—

C, D

U053B:68

—

Error signal received from forward sensing camera (FSC)

—

C, D

U0599:68

—

Error signal received from DC-DC converter

—

C, D

U1007:68

—

Communication error with current sensor

—

C, D

U2005:68

—

Error vehicle speed signal received from PCM

—

C, D

U2100:00

—

Front body control module (FBCM) configuration error

—

C, D

U2101:00

—

Front body control module (FBCM) configuration error

—

C, D

U3000:49

—

Front body control module (FBCM) internal malfunction

—

C, D

U3000:56

—

Front body control module (FBCM) internal malfunction

—

C, D

U3003:16

—

Front body control module (FBCM) power supply voltage (B+ power supply) low input

—

C, D

U3003:17

—

Front body control module (FBCM) power supply voltage high input

—

C, D

U3006:62

—

Front body control module (FBCM) power supply voltage mismatch

—

C, D

DTC No.	Description	Detection condition
B1008:02	Windshield wiper control signal error	• Front body control module (FBCM) receives the error signals from the start stop unit with the ignition switched ON (engine off or on).
B1048:7B	Brake fluid level sensor circuit malfunction	• Front body control module (FBCM) detected that the brake fluid level is less than MIN with the ignition switched ON (engine off or on).
B1087:88	LIN communication error	• LIN bus communication line malfunction detected for 1 s or more.
B1088:88	LIN communication error	• LIN bus communication line malfunction detected for 1 s or more.
B1092:11^*1	DRL relay circuit malfunction	• Front body control module (FBCM) detects a short to ground in the DRL relay circuit with the ignition switched ON (engine off or on).
B109A:12	Headlight HI relay circuit malfunction	• Front body control module (FBCM) detects a short to power supply in the headlight HI relay circuit with the ignition switched ON (engine off or on).
B109A:14	Headlight HI relay circuit malfunction	• Front body control module (FBCM) detects an open circuit or short to ground in the headlight HI relay circuit with the ignition switched ON (engine off or on).
B10AD:86	Error signal received from auto light sensor/rain sensor	• Front body control module (FBCM) receives the error signals from the auto light sensor/rain sensor for 5 s or more with the ignition switched ON (engine off or on).
B10AF:12	Blower relay circuit malfunction	• Front body control module (FBCM) detects a short to power supply in the blower relay circuit with the ignition switched ON (engine off or on).
B1142:13	IG1 relay circuit malfunction	• Front body control module (FBCM) detects an open circuit or short to ground in the IG1 relay circuit for 2 s or more with the ignition switched ON (engine off or on).
B1143:13	IG2 relay control circuit malfunction	• Front body control module (FBCM) detects an open circuit in the IG2 relay control circuit for 2 s or more with the ignition switched ON (engine off or on).
B11DB:86	Error signal received from current sensor	• Front body control module (FBCM) receives the error signals from the current sensor for 5 s or more with the ignition switched ON (engine off or on).
B1314:11	Illumination output circuit malfunction	• Front body control module (FBCM) detects over-current in the illumination output circuit with the ignition switched ON (engine off or on).
B134D:02	Headlight control signal error	• Front body control module (FBCM) receives the error signal from the start stop unit for 5 s or more with the ignition switched ON (engine off or on).
B13CF:19	IG2 power supply output circuit malfunction	• Front body control module (FBCM) detects over-current in the IG2 power supply output circuit with the ignition switched ON (engine off or on).
B13D0:11	TNS (parking lights) circuit malfunction	• Front body control module (FBCM) detects over-current in the TNS relay circuit with the ignition switched ON (engine off or on).
B13D2:12^*2	Front fog light relay circuit malfunction	• Front body control module (FBCM) detects a short to power supply in the front fog light relay circuit with the ignition switched ON (engine off or on).
B13FE:12	Headlight LO relay No.1 circuit malfunction	• Front body control module (FBCM) detects a short to power supply in the headlight LO relay No.1 circuit with the ignition switched ON (engine off or on).
B13FE:14	Headlight LO relay No.1 circuit malfunction	• Front body control module (FBCM) detects an open circuit or short to ground in the headlight LO relay No.1 circuit with the ignition switched ON (engine off or on).
B141E:12	Headlight LO relay No.2 circuit malfunction	• Front body control module (FBCM) detects a short to power supply in the headlight LO relay No.2 circuit with the ignition switched ON (engine off or on).
B1C84:12	Rear window defogger relay circuit malfunction	• Front body control module (FBCM) detects a short to power supply in the rear window defogger relay circuit with the ignition switched ON (engine off or on).
B1C84:14	Rear window defogger relay circuit malfunction	• Front body control module (FBCM) detects an open circuit or short to ground in the rear window defogger relay circuit with the ignition switched ON (engine off or on).
B1D06:11	Turn light (LH) circuit malfunction	• Front body control module (FBCM) detects over-current in the turn light (LH) circuit with the ignition switched ON (engine off or on).
B1D06:13	Turn light (LH) circuit malfunction	• Front body control module (FBCM) detects an open circuit in the turn light (LH) circuit with the ignition switched ON (engine off or on).
B1D07:11	Turn light (RH) circuit malfunction	• Front body control module (FBCM) detects over-current in the turn light (RH) circuit with the ignition switched ON (engine off or on).
B1D07:13	Turn light (RH) circuit malfunction	• Front body control module (FBCM) detects an open circuit in the turn light (RH) circuit with the ignition switched ON (engine off or on).
U0001:88	Module communication error (HS-CAN)	• Front body control module (FBCM) detects a CAN bus communication line (HS-CAN) malfunction 10 times continuously.
U0100:00	Communication error with PCM	• Front body control module (FBCM) could not receive the CAN signal from the PCM for 5 s or more.
U0101:00	Communication error with TCM	• Front body control module (FBCM) could not receive the CAN signal from the TCM for 5 s or more.
U0121:00	Communication error with DSC HU/CM	• Front body control module (FBCM) could not receive the CAN signal from the DSC HU/CM for 5 s or more.
U0151:00	Communication error with SAS control module	• Front body control module (FBCM) could not receive the CAN signal from the SAS control module for 5 s or more.
U0155:00	Communication error with instrument cluster	• Front body control module (FBCM) could not receive the CAN signal from the instrument cluster for 5 s or more.
U0214:00	Communication error with start stop unit	• Front body control module (FBCM) could not receive the CAN signal from the start stop unit for 5 s or more.
U0231:68	Communication error with auto light sensor/rain sensor	• Front body control module (FBCM) could not receive the signals from the auto light sensor/rain sensor for 5 s or more with the ignition switched ON (engine off or on).
U023A:00	Communication error with forward sensing camera (FSC)	• Front body control module (FBCM) could not receive the CAN signal from the forward sensing camera (FSC) for 5 s or more.
U0298:68	Communication error with DC-DC converter	• Front body control module (FBCM) could not receive the signals from the DC-DC converter for 5 s or more.
U0338:09	Error light switch signal received from start stop unit	• Front body control module (FBCM) receives the CAN error signals from the start stop unit 3 times continuously with the ignition switched ON (engine off or on).
U0401:68	Error signal received from PCM	• Front body control module (FBCM) receives the error ECT sensor or ambient temperature sensor signals from the PCM for 5 s or more with the ignition switched ON (engine off or on).
U053B:68	Error signal received from forward sensing camera (FSC)	• Front body control module (FBCM) receives the error signals from the forward sensing camera (FSC) for 5 s or more with the ignition switched ON (engine off or on).
U0599:68	Error signal received from DC-DC converter	• Front body control module (FBCM) receives error signals from the DC-DC converter for 5 s or more with the ignition switched ON (engine off or on).
U1007:68	Communication error with current sensor	• Front body control module (FBCM) could not receive signals from the current sensor for 5 s or more with the ignition switched ON (engine off or on).
U2005:68	Error vehicle speed signal received from PCM	• Front body control module (FBCM) receives the vehicle speed signal error from the PCM for 5 s or more with the ignition switched ON (engine off or on).
U2100:00	Front body control module (FBCM) configuration error	• Front body control module (FBCM) configuration error (no configuration) detected.
U2101:00	Front body control module (FBCM) configuration error	• Front body control module (FBCM) configuration error detected.
U3000:49	Front body control module (FBCM) internal malfunction	• Front body control module (FBCM) detects the internal malfunction.
U3000:56	Front body control module (FBCM) internal malfunction	• Front body control module (FBCM) detects the internal malfunction.
U3003:16	Front body control module (FBCM) power supply voltage (B+ power supply) low input	• Front body control module (FBCM) power supply circuit voltage of 8.8 V or less is detected for 10 s or more with the ignition switched ON (engine off or on).
U3003:17	Front body control module (FBCM) power supply voltage high input	• Front body control module (FBCM) power supply circuit voltage of 14.2 V or more is detected for 10 s or more with the ignition switched ON (engine off or on).
U3006:62	Front body control module (FBCM) power supply voltage mismatch	• Front body control module (FBCM) terminal 1A, 1B, 3K, and 3L voltages of 2 V or more lower than the voltage of terminal 2A are detected for 5 s or more with the ignition switched ON (engine off or on).

DTC No.

Description

Detection condition

B1008:02

Windshield wiper control signal error

• Front body control module (FBCM) receives the error signals from the start stop unit with the ignition switched ON (engine off or on).

B1048:7B

Brake fluid level sensor circuit malfunction

• Front body control module (FBCM) detected that the brake fluid level is less than MIN with the ignition switched ON (engine off or on).

B1087:88

LIN communication error

• LIN bus communication line malfunction detected for 1 s or more.

B1088:88

LIN communication error

• LIN bus communication line malfunction detected for 1 s or more.

B1092:11^*1

DRL relay circuit malfunction

• Front body control module (FBCM) detects a short to ground in the DRL relay circuit with the ignition switched ON (engine off or on).

B109A:12

Headlight HI relay circuit malfunction

• Front body control module (FBCM) detects a short to power supply in the headlight HI relay circuit with the ignition switched ON (engine off or on).

B109A:14

Headlight HI relay circuit malfunction

• Front body control module (FBCM) detects an open circuit or short to ground in the headlight HI relay circuit with the ignition switched ON (engine off or on).

B10AD:86

Error signal received from auto light sensor/rain sensor

• Front body control module (FBCM) receives the error signals from the auto light sensor/rain sensor for 5 s or more with the ignition switched ON (engine off or on).

B10AF:12

Blower relay circuit malfunction

• Front body control module (FBCM) detects a short to power supply in the blower relay circuit with the ignition switched ON (engine off or on).

B1142:13

IG1 relay circuit malfunction

• Front body control module (FBCM) detects an open circuit or short to ground in the IG1 relay circuit for 2 s or more with the ignition switched ON (engine off or on).

B1143:13

IG2 relay control circuit malfunction

• Front body control module (FBCM) detects an open circuit in the IG2 relay control circuit for 2 s or more with the ignition switched ON (engine off or on).

B11DB:86

Error signal received from current sensor

• Front body control module (FBCM) receives the error signals from the current sensor for 5 s or more with the ignition switched ON (engine off or on).

B1314:11

Illumination output circuit malfunction

• Front body control module (FBCM) detects over-current in the illumination output circuit with the ignition switched ON (engine off or on).

B134D:02

Headlight control signal error

• Front body control module (FBCM) receives the error signal from the start stop unit for 5 s or more with the ignition switched ON (engine off or on).

B13CF:19

IG2 power supply output circuit malfunction

• Front body control module (FBCM) detects over-current in the IG2 power supply output circuit with the ignition switched ON (engine off or on).

B13D0:11

TNS (parking lights) circuit malfunction

• Front body control module (FBCM) detects over-current in the TNS relay circuit with the ignition switched ON (engine off or on).

B13D2:12^*2

Front fog light relay circuit malfunction

• Front body control module (FBCM) detects a short to power supply in the front fog light relay circuit with the ignition switched ON (engine off or on).

B13FE:12

Headlight LO relay No.1 circuit malfunction

• Front body control module (FBCM) detects a short to power supply in the headlight LO relay No.1 circuit with the ignition switched ON (engine off or on).

B13FE:14

Headlight LO relay No.1 circuit malfunction

• Front body control module (FBCM) detects an open circuit or short to ground in the headlight LO relay No.1 circuit with the ignition switched ON (engine off or on).

B141E:12

Headlight LO relay No.2 circuit malfunction

• Front body control module (FBCM) detects a short to power supply in the headlight LO relay No.2 circuit with the ignition switched ON (engine off or on).

B1C84:12

Rear window defogger relay circuit malfunction

• Front body control module (FBCM) detects a short to power supply in the rear window defogger relay circuit with the ignition switched ON (engine off or on).

B1C84:14

Rear window defogger relay circuit malfunction

• Front body control module (FBCM) detects an open circuit or short to ground in the rear window defogger relay circuit with the ignition switched ON (engine off or on).

B1D06:11

Turn light (LH) circuit malfunction

• Front body control module (FBCM) detects over-current in the turn light (LH) circuit with the ignition switched ON (engine off or on).

B1D06:13

Turn light (LH) circuit malfunction

• Front body control module (FBCM) detects an open circuit in the turn light (LH) circuit with the ignition switched ON (engine off or on).

B1D07:11

Turn light (RH) circuit malfunction

• Front body control module (FBCM) detects over-current in the turn light (RH) circuit with the ignition switched ON (engine off or on).

B1D07:13

Turn light (RH) circuit malfunction

• Front body control module (FBCM) detects an open circuit in the turn light (RH) circuit with the ignition switched ON (engine off or on).

U0001:88

Module communication error (HS-CAN)

• Front body control module (FBCM) detects a CAN bus communication line (HS-CAN) malfunction 10 times continuously.

U0100:00

Communication error with PCM

• Front body control module (FBCM) could not receive the CAN signal from the PCM for 5 s or more.

U0101:00

Communication error with TCM

• Front body control module (FBCM) could not receive the CAN signal from the TCM for 5 s or more.

U0121:00

Communication error with DSC HU/CM

• Front body control module (FBCM) could not receive the CAN signal from the DSC HU/CM for 5 s or more.

U0151:00

Communication error with SAS control module

• Front body control module (FBCM) could not receive the CAN signal from the SAS control module for 5 s or more.

U0155:00

Communication error with instrument cluster

• Front body control module (FBCM) could not receive the CAN signal from the instrument cluster for 5 s or more.

U0214:00

Communication error with start stop unit

• Front body control module (FBCM) could not receive the CAN signal from the start stop unit for 5 s or more.

U0231:68

Communication error with auto light sensor/rain sensor

• Front body control module (FBCM) could not receive the signals from the auto light sensor/rain sensor for 5 s or more with the ignition switched ON (engine off or on).

U023A:00

Communication error with forward sensing camera (FSC)

• Front body control module (FBCM) could not receive the CAN signal from the forward sensing camera (FSC) for 5 s or more.

U0298:68

Communication error with DC-DC converter

• Front body control module (FBCM) could not receive the signals from the DC-DC converter for 5 s or more.

U0338:09

Error light switch signal received from start stop unit

• Front body control module (FBCM) receives the CAN error signals from the start stop unit 3 times continuously with the ignition switched ON (engine off or on).

U0401:68

Error signal received from PCM

• Front body control module (FBCM) receives the error ECT sensor or ambient temperature sensor signals from the PCM for 5 s or more with the ignition switched ON (engine off or on).

U053B:68

Error signal received from forward sensing camera (FSC)

• Front body control module (FBCM) receives the error signals from the forward sensing camera (FSC) for 5 s or more with the ignition switched ON (engine off or on).

U0599:68

Error signal received from DC-DC converter

• Front body control module (FBCM) receives error signals from the DC-DC converter for 5 s or more with the ignition switched ON (engine off or on).

U1007:68

Communication error with current sensor

• Front body control module (FBCM) could not receive signals from the current sensor for 5 s or more with the ignition switched ON (engine off or on).

U2005:68

Error vehicle speed signal received from PCM

• Front body control module (FBCM) receives the vehicle speed signal error from the PCM for 5 s or more with the ignition switched ON (engine off or on).

U2100:00

Front body control module (FBCM) configuration error

• Front body control module (FBCM) configuration error (no configuration) detected.

U2101:00

Front body control module (FBCM) configuration error

• Front body control module (FBCM) configuration error detected.

U3000:49

Front body control module (FBCM) internal malfunction

• Front body control module (FBCM) detects the internal malfunction.

U3000:56

Front body control module (FBCM) internal malfunction

• Front body control module (FBCM) detects the internal malfunction.

U3003:16

Front body control module (FBCM) power supply voltage (B+ power supply) low input

• Front body control module (FBCM) power supply circuit voltage of 8.8 V or less is detected for 10 s or more with the ignition switched ON (engine off or on).

U3003:17

Front body control module (FBCM) power supply voltage high input

• Front body control module (FBCM) power supply circuit voltage of 14.2 V or more is detected for 10 s or more with the ignition switched ON (engine off or on).

U3006:62

Front body control module (FBCM) power supply voltage mismatch

• Front body control module (FBCM) terminal 1A, 1B, 3K, and 3L voltages of 2 V or more lower than the voltage of terminal 2A are detected for 5 s or more with the ignition switched ON (engine off or on).

• The front body control module (FBCM) stores the following two types of snapshot data (vehicle information) when a DTC is detected and displays them in the Mazda Modular Diagnostic System (M-MDS).

― Vehicle information detected by front body control module (FBCM)

― Vehicle information detected by instrument cluster and received by front body control module (FBCM) via CAN signal

• The data for all DTCs currently detected is stored.

Snapshot data item	Unit	Data contents	Data read/use method	Corresponding data monitor items
AAT	°C	°F	Ambient temperature	—	—
APP_STATUS	Accelerator Pedal Off/Under20%/Over20%/FAIL	Accelerator pedal position status	—	—
CFG_STATUS	Config Complete/Not Configured/Config Error	Instrument cluster configuration status	—	—
ECT_STATUS	Under 0 degrees C/0 - Under 80 degrees C/Over 80 degrees C/FAIL	Engine coolant temperature status	—	—
IC_VPWR	V	Instrument cluster power supply voltage	• The front body control module (FBCM) constantly receives the power supply voltage value of the instrument cluster sent via CAN signal from the instrument cluster. • If a DTC is detected, the front body control module (FBCM) records the power supply voltage of the instrument cluster when the DTC was detected, and it is displayed in the M-MDS.	VPWR^*1
IG-ON_TIMER	hh:mm:ss^*2	Elapsed time since ignition was switched ON (engine off or on) Note • The instrument cluster records the elapsed time since the ignition was switched ON (engine off or on).	• The front body control module (FBCM) constantly receives the elapsed time since the ignition was switched ON (engine off or on) sent via CAN signal from the instrument cluster. • If a DTC is detected, the front body control module (FBCM) records the elapsed time since the ignition was switched ON (engine off or on) when the DTC was detected, and it is displayed in the M-MDS.	—
PWR_MODE_KEY	Key Out/Key Recently Out (Position 0)/Accessory (Position 1)/Post Ignition (Position 2)/Ignition On (Position 2)/Running (Position 2)/Running - Starting	• Key Out: Ignition switched off • Key Recently Out (Position 0): Elapsed time within 3 s since ignition was switched off • Accessory (Position 1): Ignition is switched to ACC • Post Ignition (Position 2): Elapsed time within 3 s since ignition was switched ON (engine off or on) • Ignition On (Position 2): Ignition switched ON (engine off) • Running (Position 2): Ignition switched ON (engine on) • Running - Starting: Cranking condition	• The front body control module (FBCM) constantly receives the ignition switch status sent via CAN signal from the instrument cluster. • If a DTC is detected, the front body control module (FBCM) records the ignition switch status when the DTC was detected, and it is displayed in the M-MDS.	—
RPM_STATUS	Engine Stop/Under1500rpm/Over1500rpm/FAIL	Engine speed status	• The front body control module (FBCM) constantly receives the engine speed sent via CAN signal from the instrument cluster. • If a DTC is detected, the front body control module (FBCM) records the engine speed when the DTC was detected, and it is displayed in the M-MDS.	TACHOMTR^*1
SHIFT_STATUS	P/N/D/R/FAIL	Selector lever position status	• The front body control module (FBCM) constantly receives the selector lever position sent via CAN signal from the instrument cluster. • If a DTC is detected, the front body control module (FBCM) records the selector lever position when the DTC was detected, and it is displayed in the M-MDS.	—
TOTAL_DIST	km	Miles	Accumulated total traveled distance from completion of vehicle until front body control module (FBCM) detects DTC (Odometer value in instrument cluster)	The total traveled distance from which the front body control module (FBCM) detects DTCs to the present can be calculated by performing the following procedure. 1. Verify the odometer value in the instrument cluster. 2. Verify the snapshot data item TOTAL_DIST. 3. Subtract 2 from 1.	—
TOTAL_TIME	hh:mm:ss^*2	Accumulated total elapsed time since vehicle completion until front body control module (FBCM) detects a DTC Note • When the ROOM fuse is removed, and the ignition is switched off, the time is not included in the elapsed time.	The elapsed time from which the front body control module (FBCM) detects DTCs to the present can be calculated by performing the following procedure. 1. Verify the instrument cluster PID item TOTAL_TIME. 2. Verify the snapshot data item TOTAL_TIME. 3. Subtract 2 from 1.	TOTAL_TIME^*1
VPWR	V	Front body control module (FBCM) power supply voltage	—	VPWR_B
VSPD_STATUS	Stop/0-10km/h/Over10km/h/FAIL	Vehicle speed status	• The front body control module (FBCM) constantly receives the vehicle speed sent via CAN signal from the instrument cluster. • If a DTC is detected, the front body control module (FBCM) records the vehicle speed when the DTC was detected, and it is displayed in the M-MDS.	—

Snapshot data item

Unit

Data contents

Data read/use method

Corresponding data monitor items

AAT

°C

°F

Ambient temperature

—

APP_STATUS

Accelerator Pedal Off/Under20%/Over20%/FAIL

Accelerator pedal position status

—

CFG_STATUS

Config Complete/Not Configured/Config Error

Instrument cluster configuration status

—

ECT_STATUS

Under 0 degrees C/0 - Under 80 degrees C/Over 80 degrees C/FAIL

Engine coolant temperature status

—

IC_VPWR

Instrument cluster power supply voltage

• The front body control module (FBCM) constantly receives the power supply voltage value of the instrument cluster sent via CAN signal from the instrument cluster.

• If a DTC is detected, the front body control module (FBCM) records the power supply voltage of the instrument cluster when the DTC was detected, and it is displayed in the M-MDS.

VPWR^*1

IG-ON_TIMER

hh:mm:ss^*2

Elapsed time since ignition was switched ON (engine off or on)

Note

• The instrument cluster records the elapsed time since the ignition was switched ON (engine off or on).

• The front body control module (FBCM) constantly receives the elapsed time since the ignition was switched ON (engine off or on) sent via CAN signal from the instrument cluster.

• If a DTC is detected, the front body control module (FBCM) records the elapsed time since the ignition was switched ON (engine off or on) when the DTC was detected, and it is displayed in the M-MDS.

—

PWR_MODE_KEY

Key Out/Key Recently Out (Position 0)/Accessory (Position 1)/Post Ignition (Position 2)/Ignition On (Position 2)/Running (Position 2)/Running - Starting

• Key Out: Ignition switched off

• Key Recently Out (Position 0): Elapsed time within 3 s since ignition was switched off

• Accessory (Position 1): Ignition is switched to ACC

• Post Ignition (Position 2): Elapsed time within 3 s since ignition was switched ON (engine off or on)

• Ignition On (Position 2): Ignition switched ON (engine off)

• Running (Position 2): Ignition switched ON (engine on)

• Running - Starting: Cranking condition

• The front body control module (FBCM) constantly receives the ignition switch status sent via CAN signal from the instrument cluster.

• If a DTC is detected, the front body control module (FBCM) records the ignition switch status when the DTC was detected, and it is displayed in the M-MDS.

—

RPM_STATUS

Engine Stop/Under1500rpm/Over1500rpm/FAIL

Engine speed status

• The front body control module (FBCM) constantly receives the engine speed sent via CAN signal from the instrument cluster.

• If a DTC is detected, the front body control module (FBCM) records the engine speed when the DTC was detected, and it is displayed in the M-MDS.

TACHOMTR^*1

SHIFT_STATUS

P/N/D/R/FAIL

Selector lever position status

• The front body control module (FBCM) constantly receives the selector lever position sent via CAN signal from the instrument cluster.

• If a DTC is detected, the front body control module (FBCM) records the selector lever position when the DTC was detected, and it is displayed in the M-MDS.

—

TOTAL_DIST

Miles

Accumulated total traveled distance from completion of vehicle until front body control module (FBCM) detects DTC (Odometer value in instrument cluster)

The total traveled distance from which the front body control module (FBCM) detects DTCs to the present can be calculated by performing the following procedure.

1. Verify the odometer value in the instrument cluster.

2. Verify the snapshot data item TOTAL_DIST.

3. Subtract 2 from 1.

—

TOTAL_TIME

hh:mm:ss^*2

Accumulated total elapsed time since vehicle completion until front body control module (FBCM) detects a DTC

Note

• When the ROOM fuse is removed, and the ignition is switched off, the time is not included in the elapsed time.

The elapsed time from which the front body control module (FBCM) detects DTCs to the present can be calculated by performing the following procedure.

1. Verify the instrument cluster PID item TOTAL_TIME.

2. Verify the snapshot data item TOTAL_TIME.

3. Subtract 2 from 1.

TOTAL_TIME^*1

VPWR

Front body control module (FBCM) power supply voltage

—

VPWR_B

VSPD_STATUS

Stop/0-10km/h/Over10km/h/FAIL

Vehicle speed status

• The front body control module (FBCM) constantly receives the vehicle speed sent via CAN signal from the instrument cluster.

• If a DTC is detected, the front body control module (FBCM) records the vehicle speed when the DTC was detected, and it is displayed in the M-MDS.

—

PID	Unit/Operation	Data contents	Data read/use method	Module control terminal
ABK_CS_BG^*1	Off/On	Theft-deterrent system answer-back signal input status • Off: Theft-deterrent system answer-back signal is not received. • On: Theft-deterrent system answer-back signal is received.	Theft-deterrent system answer-back request signal input from rear body control module (RBCM) Note • Operates only if the ignition is switched off.	• 2I (CAN_L) • 2K (CAN_H)
ABK_CS_KEY	Off/On	Keyless entry system answer-back signal input status • Off: Keyless entry system answer-back signal is not received. • On: Keyless entry system answer-back signal is received.	Answer-back request signal input for keyless entry system from rear body control module (RBCM)	• 2I (CAN_L) • 2K (CAN_H)
ABK_HD_CS_R	Note • It is displayed, however, if an accessory part is installed, it cannot be used.
ABK_HN_CS_R	Note • It is displayed, however, if an accessory part is installed, it cannot be used.
ABK_HN_KEY	Off/On	Keyless entry system horn answer-back signal input status • Off: Keyless entry system horn answer-back signal is not received. • On: Keyless entry system horn answer-back signal is received.	Keyless entry system horn answer-back request signal input from rear body control module (RBCM)	• 2I (CAN_L) • 2K (CAN_H)
BAT_TMP	°C, °F	Displays battery temperature (estimated).	Estimated battery temperature transmitted by LIN communication from current sensor	2E (LIN)
BG_ALARM_CS^*1	Off/On	Theft-deterrent system alarm signal input status • Off: Hazard warning light flashing request signal is not received • On: Hazard warning light flashing request signal is received	Theft-deterrent system alarm request signal input from rear body control module (RBCM) Note • Operates only if the ignition is switched off.	• 2I (CAN_L) • 2K (CAN_H)
BLWR_MT_RY	Off/On	Blower motor relay output signal status • Off: Blower relay is off. • On: Blower relay is on.	—	2Z (Blower motor relay control)
BRAKE_SW	Off/On	Brake switch operation status • Off: Brake switch (No. 2 signal) is off. (Brake pedal is depressed.) • On: Brake switch (No. 2 signal) is on. (Brake pedal is not depressed.)	Brake switch signal status detected by PCM	• 2N (CAN_L) • 2P (CAN_H)
BRK_F_L_SW	Normal/Low/Reserved/Unknown	Brake fluid level condition • Normal: Brake fluid level is between MAX and MIN. • Low: Brake fluid level is lower than MIN. • Reserved: — • Unknown: Brake fluid level is not determined.	—	2Q (Brake fluid level switch signal)
DCDC_CVT_ST	Wake_Up/Bypass/Boost_1/Boost_2/Boost_3/Error/Default	DC-DC converter status	—	2H (LIN)
DCDC_VLT_O	V	Displays DC-DC converter output voltage.	—	2H (LIN)
DEFOG_F_CS	Off/On	Front defogger operation request signal from heater control unit • Off: Front window defogger control signal is not received. • On: Front window defogger control signal is received.	—	• 2I (CAN_L) • 2K (CAN_H)
DEFOG_R_CS	Off/On	Rear defogger operation request signal from heater control unit • Off: Rear window defogger control signal is not received. • On: Rear window defogger control signal is received.	For manual A/C vehicles, request signal transmission is via LIN communication.	• 2I (CAN_L) • 2K (CAN_H)
ENG_C_TMP	°C, °F	Displays the engine coolant temperature value from the PCM.	—	• 2N (CAN_L) • 2P (CAN_H)
ESS_ST	Off/On	Emergency signal system (ESS) operation condition • Off: Emergency signal system (ESS) is not operated. • On: Emergency signal system (ESS) is operated.	—	—
F_FOG_LMP^*2	Off/On	Front fog light control signal • Off: Front fog light is turned off. • On: Front fog light is turned on.	—	—
F_FOG_SW^*2	Off/On	Front fog light switch input signal from start stop unit • Off: Front fog light switch F.FOG signal is not received. • On: Front fog light switch F.FOG signal is received.	—	• 2I (CAN_L) • 2K (CAN_H)
H/L	OFF/DRL/TNS/H/L_LOW/H/L_HI	Headlight control signal • OFF: Headlight is turned off. • DRL: DRL is turned on. • TNS: TNS (parking lights) is turned on. • H/L_LOW: Headlight (LO) is turned on. • H/L_HI: Headlight (HI) is turned on.	—	—
H/L_CLN_RY^*3	Off/On	Headlight cleaner relay control signal • Off: Headlight cleaner relay is off. • On: Headlight cleaner relay is on.	—	1Q (Headlight cleaner motor control)
H/L_CS_RLS^*4	Off/TNS_On/TNS+H/L_On/TNS+H/L_On_J	Headlight control input signal from auto light sensor/rain sensor • Off: TNS (parking lights) and headlight on request signal is not received from auto light sensor. • TNS_On: TNS (parking lights) on signal is received from auto light sensor. • TNS+H/L_On: TNS (parking lights) and headlight LO on signal is received from auto light sensor. • TNS+H/L_On_J: —	—	2G (LIN)
H/L_HI	Off/On	Headlight HI beams • Off: Headlight HI is turned off. • On: Headlight HI is turned on.	—	—
H/L_SW_HI	Off/On	Light switch position (HI) condition via CAN signal from start stop unit • Off: Light switch HI signal is not received. • On: Light switch HI signal is received.	—	• 2I (CAN_L) • 2K (CAN_H)
H/L_SW_LOW1	Off/On	Displays dimmer switch position of light switch sent from start stop unit via CAN signal • Off: Other than dimmer switch LO position of light switch is received • On: Dimmer switch LO position of light switch is received	Verify if the monitor value switches when the dimmer switch of the light switch is switched between LO and HI positions. If the dimmer switch operation and monitor values do not match, inspect the start stop unit or CAN communication.	• 2I (CAN_L) • 2K (CAN_H)
H/L_SW_OFF	Off/On	Light switch position (OFF) condition via CAN signal from start stop unit • Off: Light switch OFF signal is not received. • On: Light switch OFF signal is received.	—	• 2I (CAN_L) • 2K (CAN_H)
H/L_SW_PASS	Off/On	Light switch position (PASS) condition via CAN signal from start stop unit • Off: Light switch FLASH-TO-PASS signal is not received. • On: Light switch FLASH-TO-PASS signal is received.	—	• 2I (CAN_L) • 2K (CAN_H)
H/L_SW_TNS	Off/On	Light switch position (TNS (parking lights)) status via CAN signal from start stop unit • Off: Light switch TNS (parking lights) signal is not received. • On: Light switch TNS (parking lights) signal is received.	—	• 2I (CAN_L) • 2K (CAN_H)
H/L_TNS	Off/On	Light switch (TNS (parking lights)) output signal • Off: TNS (parking lights) is turned off. • On: TNS (parking lights) is turned on.	—	—
HAZARD_LMP	Off/On	Hazard light output signal • Off: Hazard light is turned off. • On: Hazard light is turned on.	—	—
HAZARD_SW	Off/On/Unknown	Hazard switch input signal from start stop unit • Off: Hazard warning switch is not pressed. • On: Hazard warning switch is pressed. • Unknown: Hazard warning switch on/off is not determined.	—	• 2I (CAN_L) • 2K (CAN_H)
HBC_CS^*5	Off/On/Invalid	High beam control (HBC) system control signal input from forward sensing camera (FSC) • Off: High beam control (HBC) system signal is not received. • On: High beam control (HBC) system signal is received. • Invalid: High beam control (HBC) system signal has error.	—	• 2I (CAN_L) • 2K (CAN_H)
HBC_ST^*5	Off/On	Operation status of high beam control (HBC) system • Off: High beam control (HBC) system is not operated. • On: High beam control (HBC) system is operated.	Control status of high beam control (HBC) system of front body control module (FBCM) by signal from forward sensing camera (FSC)	• 2I (CAN_L) • 2K (CAN_H)
HEAT_CS_R	Note • It is displayed, however, if an accessory part is installed, it cannot be used.
IG_ST	Off/On	Ignition switch status • Off: IG1 is off. • On: IG1 is on.	—	—
L_OFF_AUTO	Note • Displays in the M-MDS but it does not operate.
L_OFF_BS	Note • Displays in the M-MDS but it does not operate.
OIL_P_SW	Note • Displays in the M-MDS but it does not operate.
OUT_CAR_TMP	°C, °F	Displays the ambient temperature value input from the PCM.	—	• 2N (CAN_L) • 2P (CAN_H)
P_BRAKE_SW	Off/On	Electric parking brake switch status having input from instrument cluster • Off: Electric parking brake switch is off. • On: Electric parking brake switch is on.	—	• 2I (CAN_L) • 2K (CAN_H)
PNC_CS	Off/On	Panic signal input from rear body control module (RBCM) • Off: Panic control signal is not received. • On: Panic control signal is received.	—	• 2I (CAN_L) • 2K (CAN_H)
PNC_HD_CS_R	Note • It is displayed, however, if an accessory part is installed, it cannot be used.
PNC_HN_CS_R	Note • It is displayed, however, if an accessory part is installed, it cannot be used.
PTC_HEAT_CS	Off/On	PTC heater operation request signal from climate control unit • Off: PTC heater control signal is not received. • On: PTC heater control signal is received.	—	• 2I (CAN_L) • 2K (CAN_H)
R_FOG_LMP^*6	Off/On	Rear fog light control signal • Off: Rear fog light is turned off. • On: Rear fog light is turned on.	—	—
R_FOG_SW^*6	Off/On	Rear fog light switch input signal from start stop unit • Off: Rear fog light switch is not in R.FOG position • On: Rear fog light switch is in R.FOG position	—	• 2I (CAN_L) • 2K (CAN_H)
RES_CS	Note • It is displayed, however, if an accessory part is installed, it cannot be used.
RLS_FLT^*4	O.K./FAULT	Fail determination signal of auto light sensor/rain sensor • O.K.: Rain sensor is normal. • FAULT: Rain sensor has a malfunction.	If normal, the value is O.K.. If abnormal, FAULT.	2G (LIN)
S_HT_CUT^*7	No_Request/Cut	The FBCM controls the seat warmer output at an appropriate timing in consideration of the vehicle conditions such as power supply voltage decrease. • No_Request: Except below • Cut: When FBCM stops or lowers seat warmer output	—	—
SHIFT_L_POS	Between/P/R/N/D/S(2)/L(1)	Selector lever position signal from TCM • Between: Selector lever is between two positions. • P: Selector lever is in P position. • R: Selector lever is in R position. • N: Selector lever is in N position. • D: Selector lever is in D position. • S(2): Selector lever is in D position 2nd gear. • L(1): Selector lever is in D position 1st gear.	—	• 2I (CAN_L) • 2K (CAN_H)
TURN_L_L	Off/On	Turn light (LH) output signal • Off: Turn light (LH) is turned off. • On: Turn light (LH) is turned on.	—	—
TURN_L_R	Off/On	Turn light (RH) output signal • Off: Turn light (RH) is turned off. • On: Turn light (RH) is turned on.	—	—
TURN_SW	Off/Turn_R_On/Turn_L_On/Unknown	Turn switch signal input from start stop unit • Off: Turn switch is in OFF position. • Turn_R_On: Turn switch is in RH position. • Turn_L_On: Turn switch is in LH position. • Unknown: Turn switch position is not determined.	—	• 2I (CAN_L) • 2K (CAN_H)
VPWR_B	V	Displays front body control module (FBCM) power supply voltage	—	2A, 3K, 3L (Power supply)
VSPD	KPH, MPH	Displays the vehicle speed signal from the PCM.	—	• 2N (CAN_L) • 2P (CAN_H)
WAS_FLUID_L^*8	Normal/Low/Reserved/Unknown	Washer fluid level • Normal: Washer fluid level is normal. • Low: Washer fluid level is low. • Reserved: — • Unknown: Washer fluid level is not determined.	—	2S (Washer level switch signal)
WAS_MT_RY_F	Off/On	Windshield washer motor relay operation signal • Off: Windshield washer motor relay is off. • On: Windshield washer motor relay is on.	—	3F (Windshield washer motor control)
WAS_MT_RY_R	Off/On	Rear washer motor relay operation signal • Off: Rear washer motor relay is off. • On: Rear washer motor relay is on.	—	3H (Rear window washer motor control)
WASHER_F	Off/On	Windshield washer switch input signal from start stop unit • Off: Windshield washer switch is off. • On: Windshield washer switch is on.	—	• 2I (CAN_L) • 2K (CAN_H)
WASHER_R	Off/On	Rear washer switch input signal from start stop unit • Off: Rear wiper and washer switch is not in rear washer position. • On: Rear wiper and washer switch is in rear washer position.	—	• 2I (CAN_L) • 2K (CAN_H)
WIP_CS_RLS^*4	Off/Single_Wipe/F_Wiper_LOW/F_Wiper_HI/Failure	Auto wiper input signal from auto light sensor/rain sensor • Off: Wiper operation signal is not received from rain sensor. • Single_Wipe: Signal to operate wiper once is received from rain sensor. • F_Wiper_LOW: Signal to operate wiper at low speed is received from rain sensor. • F_Wiper_HI: Signal to operate wiper at high speed is received from rain sensor. • Failure: Communication with rain sensor is failed.	—	2G (LIN)
WIP_F	OFF/LOW/HI/INT / AUTO	Windshield wiper switch input signal from start stop unit • OFF: Windshield wiper switch is in OFF position. • LOW: Windshield wiper switch is in LO position. • HI: Windshield wiper switch is in HI position. • INT / AUTO: Windshield wiper switch is in INT or AUTO position.	—	• 2I (CAN_L) • 2K (CAN_H)
WIP_F_INT_L	%	Displays the windshield wiper intermittent interval time input signal from start stop unit.	—	• 2I (CAN_L) • 2K (CAN_H)
WIP_F_LOW	Off/On	Windshield wiper LO switch input status • Off: Windshield wiper switch is not in LO position. • On: Windshield wiper switch is in LO position.	—	2Y (Windshield wiper (LO) switch signal)
WIP_F_MST	Stop/Move	Windshield wiper stop position signal input • Stop: Windshield wipers stop at normal position • Move: Windshield wipers do not stop at normal position	If windshield wipers are operating, Move-Stop is repeated.	2AA (Autostop switch signal)
WIP_F_RY_HI	Off/On	Windshield wiper HI relay output signal • Off: Windshield wiper HI relay is off. • On: Windshield wiper HI relay is on.	—	3C, 3E (Windshield wiper motor (HI) control)
WIP_F_RY_LO	Off/On	Windshield wiper relay LO output signal • Off: Windshield wiper LO relay is off. • On: Windshield wiper LO relay is on.	—	3G, 3I (Windshield wiper motor (LOW) control)
WIP_R	OFF/LOW/INT	Rear wiper operation condition input signal from start stop unit • OFF: Rear wiper switch is in OFF position. • LOW: Rear wiper switch is in ON position. • INT: Rear wiper switch is in INT position.	—	• 2I (CAN_L) • 2K (CAN_H)
WIP_R_RY	Off/On	Rear wiper relay drive signal • Off: Rear wiper motor is not operated. • On: Rear wiper motor is operated.	—	• 2I (CAN_L) • 2K (CAN_H)

PID

Unit/Operation

Data contents

Data read/use method

Module control terminal

ABK_CS_BG^*1

Off/On

Theft-deterrent system answer-back signal input status

• Off: Theft-deterrent system answer-back signal is not received.

• On: Theft-deterrent system answer-back signal is received.

Theft-deterrent system answer-back request signal input from rear body control module (RBCM)

Note

• Operates only if the ignition is switched off.

• 2I (CAN_L)

• 2K (CAN_H)

ABK_CS_KEY

Off/On

Keyless entry system answer-back signal input status

• Off: Keyless entry system answer-back signal is not received.

• On: Keyless entry system answer-back signal is received.

Answer-back request signal input for keyless entry system from rear body control module (RBCM)

• 2I (CAN_L)

• 2K (CAN_H)

ABK_HD_CS_R

Note

• It is displayed, however, if an accessory part is installed, it cannot be used.

ABK_HN_CS_R

Note

• It is displayed, however, if an accessory part is installed, it cannot be used.

ABK_HN_KEY

Off/On

Keyless entry system horn answer-back signal input status

• Off: Keyless entry system horn answer-back signal is not received.

• On: Keyless entry system horn answer-back signal is received.

Keyless entry system horn answer-back request signal input from rear body control module (RBCM)

• 2I (CAN_L)

• 2K (CAN_H)

BAT_TMP

°C, °F

Displays battery temperature (estimated).

Estimated battery temperature transmitted by LIN communication from current sensor

2E (LIN)

BG_ALARM_CS^*1

Off/On

Theft-deterrent system alarm signal input status

• Off: Hazard warning light flashing request signal is not received

• On: Hazard warning light flashing request signal is received

Theft-deterrent system alarm request signal input from rear body control module (RBCM)

Note

• Operates only if the ignition is switched off.

• 2I (CAN_L)

• 2K (CAN_H)

BLWR_MT_RY

Off/On

Blower motor relay output signal status

• Off: Blower relay is off.

• On: Blower relay is on.

—

2Z (Blower motor relay control)

BRAKE_SW

Off/On

Brake switch operation status

• Off: Brake switch (No. 2 signal) is off. (Brake pedal is depressed.)

• On: Brake switch (No. 2 signal) is on. (Brake pedal is not depressed.)

Brake switch signal status detected by PCM

• 2N (CAN_L)

• 2P (CAN_H)

BRK_F_L_SW

Normal/Low/Reserved/Unknown

Brake fluid level condition

• Normal: Brake fluid level is between MAX and MIN.

• Low: Brake fluid level is lower than MIN.

• Reserved: —

• Unknown: Brake fluid level is not determined.

—

2Q (Brake fluid level switch signal)

DCDC_CVT_ST

Wake_Up/Bypass/Boost_1/Boost_2/Boost_3/Error/Default

DC-DC converter status

—

2H (LIN)

DCDC_VLT_O

Displays DC-DC converter output voltage.

—

2H (LIN)

DEFOG_F_CS

Off/On

Front defogger operation request signal from heater control unit

• Off: Front window defogger control signal is not received.

• On: Front window defogger control signal is received.

—

• 2I (CAN_L)

• 2K (CAN_H)

DEFOG_R_CS

Off/On

Rear defogger operation request signal from heater control unit

• Off: Rear window defogger control signal is not received.

• On: Rear window defogger control signal is received.

For manual A/C vehicles, request signal transmission is via LIN communication.

• 2I (CAN_L)

• 2K (CAN_H)

ENG_C_TMP

°C, °F

Displays the engine coolant temperature value from the PCM.

—

• 2N (CAN_L)

• 2P (CAN_H)

ESS_ST

Off/On

Emergency signal system (ESS) operation condition

• Off: Emergency signal system (ESS) is not operated.

• On: Emergency signal system (ESS) is operated.

—

F_FOG_LMP^*2

Off/On

Front fog light control signal

• Off: Front fog light is turned off.

• On: Front fog light is turned on.

—

F_FOG_SW^*2

Off/On

Front fog light switch input signal from start stop unit

• Off: Front fog light switch F.FOG signal is not received.

• On: Front fog light switch F.FOG signal is received.

—

• 2I (CAN_L)

• 2K (CAN_H)

H/L

OFF/DRL/TNS/H/L_LOW/H/L_HI

Headlight control signal

• OFF: Headlight is turned off.

• DRL: DRL is turned on.

• TNS: TNS (parking lights) is turned on.

• H/L_LOW: Headlight (LO) is turned on.

• H/L_HI: Headlight (HI) is turned on.

—

H/L_CLN_RY^*3

Off/On

Headlight cleaner relay control signal

• Off: Headlight cleaner relay is off.

• On: Headlight cleaner relay is on.

—

1Q (Headlight cleaner motor control)

H/L_CS_RLS^*4

Off/TNS_On/TNS+H/L_On/TNS+H/L_On_J

Headlight control input signal from auto light sensor/rain sensor

• Off: TNS (parking lights) and headlight on request signal is not received from auto light sensor.

• TNS_On: TNS (parking lights) on signal is received from auto light sensor.

• TNS+H/L_On: TNS (parking lights) and headlight LO on signal is received from auto light sensor.

• TNS+H/L_On_J: —

—

2G (LIN)

H/L_HI

Off/On

Headlight HI beams

• Off: Headlight HI is turned off.

• On: Headlight HI is turned on.

—

H/L_SW_HI

Off/On

Light switch position (HI) condition via CAN signal from start stop unit

• Off: Light switch HI signal is not received.

• On: Light switch HI signal is received.

—

• 2I (CAN_L)

• 2K (CAN_H)

H/L_SW_LOW1

Off/On

Displays dimmer switch position of light switch sent from start stop unit via CAN signal

• Off: Other than dimmer switch LO position of light switch is received

• On: Dimmer switch LO position of light switch is received

Verify if the monitor value switches when the dimmer switch of the light switch is switched between LO and HI positions. If the dimmer switch operation and monitor values do not match, inspect the start stop unit or CAN communication.

• 2I (CAN_L)

• 2K (CAN_H)

H/L_SW_OFF

Off/On

Light switch position (OFF) condition via CAN signal from start stop unit

• Off: Light switch OFF signal is not received.

• On: Light switch OFF signal is received.

—

• 2I (CAN_L)

• 2K (CAN_H)

H/L_SW_PASS

Off/On

Light switch position (PASS) condition via CAN signal from start stop unit

• Off: Light switch FLASH-TO-PASS signal is not received.

• On: Light switch FLASH-TO-PASS signal is received.

—

• 2I (CAN_L)

• 2K (CAN_H)

H/L_SW_TNS

Off/On

Light switch position (TNS (parking lights)) status via CAN signal from start stop unit

• Off: Light switch TNS (parking lights) signal is not received.

• On: Light switch TNS (parking lights) signal is received.

—

• 2I (CAN_L)

• 2K (CAN_H)

H/L_TNS

Off/On

Light switch (TNS (parking lights)) output signal

• Off: TNS (parking lights) is turned off.

• On: TNS (parking lights) is turned on.

—

HAZARD_LMP

Off/On

Hazard light output signal

• Off: Hazard light is turned off.

• On: Hazard light is turned on.

—

HAZARD_SW

Off/On/Unknown

Hazard switch input signal from start stop unit

• Off: Hazard warning switch is not pressed.

• On: Hazard warning switch is pressed.

• Unknown: Hazard warning switch on/off is not determined.

—

• 2I (CAN_L)

• 2K (CAN_H)

HBC_CS^*5

Off/On/Invalid

High beam control (HBC) system control signal input from forward sensing camera (FSC)

• Off: High beam control (HBC) system signal is not received.

• On: High beam control (HBC) system signal is received.

• Invalid: High beam control (HBC) system signal has error.

—

• 2I (CAN_L)

• 2K (CAN_H)

HBC_ST^*5

Off/On

Operation status of high beam control (HBC) system

• Off: High beam control (HBC) system is not operated.

• On: High beam control (HBC) system is operated.

Control status of high beam control (HBC) system of front body control module (FBCM) by signal from forward sensing camera (FSC)

• 2I (CAN_L)

• 2K (CAN_H)

HEAT_CS_R

Note

• It is displayed, however, if an accessory part is installed, it cannot be used.

IG_ST

Off/On

Ignition switch status

• Off: IG1 is off.

• On: IG1 is on.

—

L_OFF_AUTO

Note

• Displays in the M-MDS but it does not operate.

L_OFF_BS

Note

• Displays in the M-MDS but it does not operate.

OIL_P_SW

Note

• Displays in the M-MDS but it does not operate.

OUT_CAR_TMP

°C, °F

Displays the ambient temperature value input from the PCM.

—

• 2N (CAN_L)

• 2P (CAN_H)

P_BRAKE_SW

Off/On

Electric parking brake switch status having input from instrument cluster

• Off: Electric parking brake switch is off.

• On: Electric parking brake switch is on.

—

• 2I (CAN_L)

• 2K (CAN_H)

PNC_CS

Off/On

Panic signal input from rear body control module (RBCM)

• Off: Panic control signal is not received.

• On: Panic control signal is received.

—

• 2I (CAN_L)

• 2K (CAN_H)

PNC_HD_CS_R

Note

• It is displayed, however, if an accessory part is installed, it cannot be used.

PNC_HN_CS_R

Note

• It is displayed, however, if an accessory part is installed, it cannot be used.

PTC_HEAT_CS

Off/On

PTC heater operation request signal from climate control unit

• Off: PTC heater control signal is not received.

• On: PTC heater control signal is received.

—

• 2I (CAN_L)

• 2K (CAN_H)

R_FOG_LMP^*6

Off/On

Rear fog light control signal

• Off: Rear fog light is turned off.

• On: Rear fog light is turned on.

—

R_FOG_SW^*6

Off/On

Rear fog light switch input signal from start stop unit

• Off: Rear fog light switch is not in R.FOG position

• On: Rear fog light switch is in R.FOG position

—

• 2I (CAN_L)

• 2K (CAN_H)

RES_CS

Note

• It is displayed, however, if an accessory part is installed, it cannot be used.

RLS_FLT^*4

O.K./FAULT

Fail determination signal of auto light sensor/rain sensor

• O.K.: Rain sensor is normal.

• FAULT: Rain sensor has a malfunction.

If normal, the value is O.K.. If abnormal, FAULT.

2G (LIN)

S_HT_CUT^*7

No_Request/Cut

The FBCM controls the seat warmer output at an appropriate timing in consideration of the vehicle conditions such as power supply voltage decrease.

• No_Request: Except below

• Cut: When FBCM stops or lowers seat warmer output

—

SHIFT_L_POS

Between/P/R/N/D/S(2)/L(1)

Selector lever position signal from TCM

• Between: Selector lever is between two positions.

• P: Selector lever is in P position.

• R: Selector lever is in R position.

• N: Selector lever is in N position.

• D: Selector lever is in D position.

• S(2): Selector lever is in D position 2nd gear.

• L(1): Selector lever is in D position 1st gear.

—

• 2I (CAN_L)

• 2K (CAN_H)

TURN_L_L

Off/On

Turn light (LH) output signal

• Off: Turn light (LH) is turned off.

• On: Turn light (LH) is turned on.

—

TURN_L_R

Off/On

Turn light (RH) output signal

• Off: Turn light (RH) is turned off.

• On: Turn light (RH) is turned on.

—

TURN_SW

Off/Turn_R_On/Turn_L_On/Unknown

Turn switch signal input from start stop unit

• Off: Turn switch is in OFF position.

• Turn_R_On: Turn switch is in RH position.

• Turn_L_On: Turn switch is in LH position.

• Unknown: Turn switch position is not determined.

—

• 2I (CAN_L)

• 2K (CAN_H)

VPWR_B

Displays front body control module (FBCM) power supply voltage

—

2A, 3K, 3L (Power supply)

VSPD

KPH, MPH

Displays the vehicle speed signal from the PCM.

—

• 2N (CAN_L)

• 2P (CAN_H)

WAS_FLUID_L^*8

Normal/Low/Reserved/Unknown

Washer fluid level

• Normal: Washer fluid level is normal.

• Low: Washer fluid level is low.

• Reserved: —

• Unknown: Washer fluid level is not determined.

—

2S (Washer level switch signal)

WAS_MT_RY_F

Off/On

Windshield washer motor relay operation signal

• Off: Windshield washer motor relay is off.

• On: Windshield washer motor relay is on.

—

3F (Windshield washer motor control)

WAS_MT_RY_R

Off/On

Rear washer motor relay operation signal

• Off: Rear washer motor relay is off.

• On: Rear washer motor relay is on.

—

3H (Rear window washer motor control)

WASHER_F

Off/On

Windshield washer switch input signal from start stop unit

• Off: Windshield washer switch is off.

• On: Windshield washer switch is on.

—

• 2I (CAN_L)

• 2K (CAN_H)

WASHER_R

Off/On

Rear washer switch input signal from start stop unit

• Off: Rear wiper and washer switch is not in rear washer position.

• On: Rear wiper and washer switch is in rear washer position.

—

• 2I (CAN_L)

• 2K (CAN_H)

WIP_CS_RLS^*4

Off/Single_Wipe/F_Wiper_LOW/F_Wiper_HI/Failure

Auto wiper input signal from auto light sensor/rain sensor

• Off: Wiper operation signal is not received from rain sensor.

• Single_Wipe: Signal to operate wiper once is received from rain sensor.

• F_Wiper_LOW: Signal to operate wiper at low speed is received from rain sensor.

• F_Wiper_HI: Signal to operate wiper at high speed is received from rain sensor.

• Failure: Communication with rain sensor is failed.

—

2G (LIN)

WIP_F

OFF/LOW/HI/INT / AUTO

Windshield wiper switch input signal from start stop unit

• OFF: Windshield wiper switch is in OFF position.

• LOW: Windshield wiper switch is in LO position.

• HI: Windshield wiper switch is in HI position.

• INT / AUTO: Windshield wiper switch is in INT or AUTO position.

—

• 2I (CAN_L)

• 2K (CAN_H)

WIP_F_INT_L

Displays the windshield wiper intermittent interval time input signal from start stop unit.

—

• 2I (CAN_L)

• 2K (CAN_H)

WIP_F_LOW

Off/On

Windshield wiper LO switch input status

• Off: Windshield wiper switch is not in LO position.

• On: Windshield wiper switch is in LO position.

—

2Y (Windshield wiper (LO) switch signal)

WIP_F_MST

Stop/Move

Windshield wiper stop position signal input

• Stop: Windshield wipers stop at normal position

• Move: Windshield wipers do not stop at normal position

If windshield wipers are operating, Move-Stop is repeated.

2AA (Autostop switch signal)

WIP_F_RY_HI

Off/On

Windshield wiper HI relay output signal

• Off: Windshield wiper HI relay is off.

• On: Windshield wiper HI relay is on.

—

3C, 3E (Windshield wiper motor (HI) control)

WIP_F_RY_LO

Off/On

Windshield wiper relay LO output signal

• Off: Windshield wiper LO relay is off.

• On: Windshield wiper LO relay is on.

—

3G, 3I (Windshield wiper motor (LOW) control)

WIP_R

OFF/LOW/INT

Rear wiper operation condition input signal from start stop unit

• OFF: Rear wiper switch is in OFF position.

• LOW: Rear wiper switch is in ON position.

• INT: Rear wiper switch is in INT position.

—

• 2I (CAN_L)

• 2K (CAN_H)

WIP_R_RY

Off/On

Rear wiper relay drive signal

• Off: Rear wiper motor is not operated.

• On: Rear wiper motor is operated.

—

• 2I (CAN_L)

• 2K (CAN_H)

Simulation item	Unit/Operation	Data contents	Output part name
DEFOG_R_ST	Off/On	• Off: Stops rear window defogger. • On: Operates rear window defogger.	Filament
ESS_ST	Off/On	• Off: Stops emergency signal system (ESS). • On: Operates emergency signal system (ESS).	Front body control module (FBCM)
F_FOG_LMP^*1	Off/On	• Off: Turns off front fog light. • On: Illuminates front fog light.	Front fog light
H/L	OFF/DRL/TNS/H/L_LOW/H/L_HI	• Off: Turns off headlight. • DRL: Illuminates running light. • TNS: Illuminates TNS (parking lights). • H/L_LOW: Illuminates headlight LO. • H/L_HI: Illuminates headlight HI.	• Headlight LO/HI • Parking light • Taillight • License plate light • Running light
H/L_CLN_RY^*2	Off/On	• Off: Turns headlight cleaner relay off. • On: Turns headlight cleaner relay on.	Front body control module (FBCM)
HAZARD_LMP	Off/On	• Off: Turns off hazard warning light. • On: Flashes hazard warning light.	• Front turn light • Side turn light • Rear turn light
PTC_HEAT_ST	Note • Displays in the M-MDS but it does not operate.
WAS_MT_RY_F	Off/On	• Off: Turns front washer motor relay off. • On: Turns front washer motor relay on.	Front body control module (FBCM)
WAS_MT_RY_R	Off/On	• Off: Turns rear washer motor relay off. • On: Turns rear washer motor relay on.	Front body control module (FBCM)

Simulation item

Unit/Operation

Data contents

Output part name

DEFOG_R_ST

Off/On

• Off: Stops rear window defogger.

• On: Operates rear window defogger.

Filament

ESS_ST

Off/On

• Off: Stops emergency signal system (ESS).

• On: Operates emergency signal system (ESS).

Front body control module (FBCM)

F_FOG_LMP^*1

Off/On

• Off: Turns off front fog light.

• On: Illuminates front fog light.

Front fog light

H/L

OFF/DRL/TNS/H/L_LOW/H/L_HI

• Off: Turns off headlight.

• DRL: Illuminates running light.

• TNS: Illuminates TNS (parking lights).

• H/L_LOW: Illuminates headlight LO.

• H/L_HI: Illuminates headlight HI.

• Headlight LO/HI

• Parking light

• Taillight

• License plate light

• Running light

H/L_CLN_RY^*2

Off/On

• Off: Turns headlight cleaner relay off.

• On: Turns headlight cleaner relay on.

Front body control module (FBCM)

HAZARD_LMP

Off/On

• Off: Turns off hazard warning light.

• On: Flashes hazard warning light.

• Front turn light

• Side turn light

• Rear turn light

PTC_HEAT_ST

Note

• Displays in the M-MDS but it does not operate.

WAS_MT_RY_F

Off/On

• Off: Turns front washer motor relay off.

• On: Turns front washer motor relay on.

Front body control module (FBCM)

WAS_MT_RY_R

Off/On

• Off: Turns rear washer motor relay off.

• On: Turns rear washer motor relay on.

Front body control module (FBCM)
