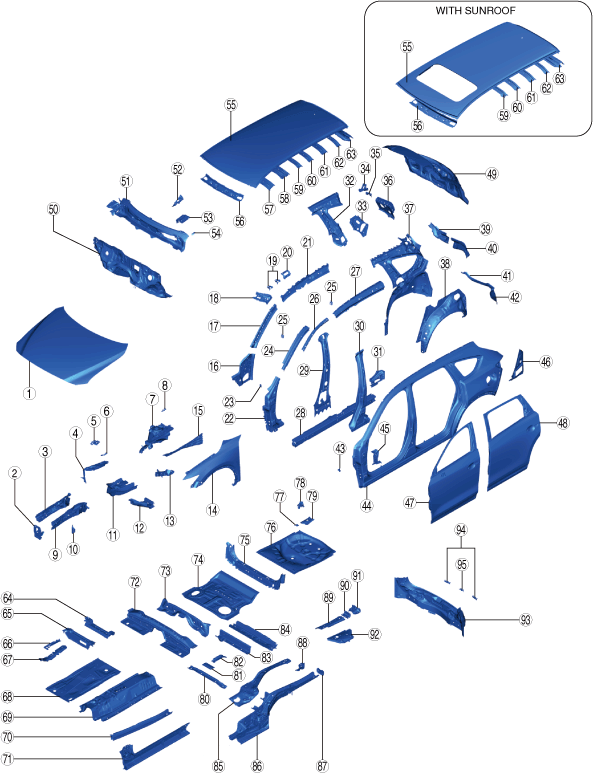

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700

ac8wzb00000007

No.	Part name			Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm) {in}
1	Bonnet (outer panel)			-	×	×	0.65 {0.026}
2	Bumper bracket component	Bumper bracket		×	-	×	2.60 {0.102}
		Suspension mounting reinforcement		-	×	×	2.90 {0.114}
		Outer frame reinforcement		-	×	×	2.00 {0.0787}
3	Front side frame (inner)	Front		-	×	×	1.40 {0.0551}
		Rear		×	-	×	1.60 {0.0630}
4	Shroud side member component	Apron reinforcement (lower)		-	×	×	0.80 {0.031}
		Shroud side panel		-	×	×	0.90 {0.035}
		Side stay		-	-	×	1.20 {0.0472}
		Apron reinforcement side stay (LH)		-	-	×	1.20 {0.0472}
		Shroud side member (RH)		-	-	×	0.70 {0.028}
5	Shroud upper reinforcement			-	×	×	0.80 {0.031}
6	Front wheel apron			-	-	×	0.80 {0.031}
7	Wheel apron panel component	Apron panel (front)		-	-	×	1.00 {0.0394}
		Apron reinforcement No.3		×	-	×	1.20 {0.0472}
		Apron reinforcement (upper)		-	-	×	1.00 {0.0394}
		Suspension housing (upper)		-	×	×	2.30 {0.0906}
		Suspension housing (lower)		-	-	×	1.20 {0.0472}
		Cowl side reinforcement		-	×	×	1.00 {0.0394}
		Wheel apron reinforcement (rear)		×	-	×	1.40 {0.0551}
		Apron reinforcement No.2		-	-	×	1.40 {0.0551}
		Apron reinforcement gusset		-	-	×	2.00 {0.0787}
8	Front fender junction			-	-	×	0.80 {0.031}
9	Front side frame (outer)	Front		-	×	×	1.40 {0.0551}
		Rear		×	-	×	1.60 {0.0630}
10	Light bracket			-	-	×	1.60 {0.0630}
11	Front frame (rear) component	Front frame (rear)		×	-	×	2.60 {0.102}
		Side member		-	-	×	1.80 {0.0709}
		Lower arm bracket		-	-	×	1.80 {0.0709}
12	Torque box			-	×	×	1.40 {0.0551}
13	Front fender stay component	Front fender stay		-	-	×	1.60 {0.0630}
		Bumper bracket		-	-	×	1.20 {0.0472}
		Front fender bracket		-	-	×	1.20 {0.0472}
		Bracket (LH) Light bracket (RH)		-	-	×	1.60 {0.0630}
14	Front fender panel			-	-	×	0.70 {0.028}
15	Cowl side reinforcement (front) component	Cowl side reinforcement (front)		×	-	×	1.40 {0.0551}
		Light bracket (rear)		-	×	×	0.80 {0.031}
16	Hinge pillar (inner)			×	-	×	1.20 {0.0472}
17	Front pillar (inner)			×	-	-	1.20 {0.0472}
18	Front pillar upper reinforcement			-	×	-	0.70 {0.028}
19	Nut plate (front)			-	-	-	1.20 {0.0472}
20	Roof corner gusset			-	×	-	2.00 {0.0787}
21	Roof rail (inner) (front)			×	-	-	1.60 {0.0630}
22	Hinge reinforcement component	Hinge reinforcement		×	-	-	1.60 {0.0630}
		Hinge gusset (lower)		×	-	-	2.30 {0.0906}
		Hinge gusset		×	-	-	1.40 {0.0551}
		Front pillar reinforcement (lower)		×	-	-	1.60 {0.0630}
23	Reinforcement checker			-	-	-	1.20 {0.0472}
24	Front pillar reinforcement (upper)			×	-	-	1.80 {0.0709}
25	Nut plate (door lock striker)			-	-	-	2.30 {0.0906}
26	Front pillar reinforcement (outer)			×	-	-	2.00 {0.0787}
27	Roof rail reinforcement			×	-	-	1.60 {0.0630}
28	Side sill reinforcement component	Side sill reinforcement		×	-	×	1.40 {0.0551}
		Side sill reinforcement (front)		×	-	-	1.60 {0.0630}
		Side sill reinforcement (rear)		×	-	×	1.40 {0.0551}
29	Center pillar (inner)			-	×	×	1.60 {0.0630}
30	Center pillar reinforcement	Inner		×	-	-	2.30 {0.0906}
		Outer	Upper	×	-	-	2.00 {0.0787}
			Lower	×	-	-	2.00 {0.0787}
31	Side sill reinforcement rear			×	-	×	1.20 {0.0472}
32	Suspension housing reinforcement component	Suspension housing reinforcement		-	×	-	0.80 {0.031}
		C-pillar reinforcement No.1		×	-	-	1.20 {0.0472}
		Wheel housing reinforcement No.1		-	×	-	0.80 {0.031}
		Rear fender reinforcement		-	-	-	0.65 {0.026}
33	Suspension housing gusset			-	-	-	1.40 {0.0551}
34	Anchor reinforcement bracket			-	×	-	1.80 {0.0709}
35	Corner junction			-	-	-	1.20 {0.0472}
36	Rear side panel			-	-	×	0.65 {0.026}
37	Rear pillar (inner) component (upper)	Roof rail (inner) (rear)		-	-	×	0.70 {0.028}
		Rear pillar (inner) No.1		-	-	×	0.70 {0.028}
		Corner plate		-	-	-	1.80 {0.0709}
		Wheel housing (inner)		-	-	×	0.80 {0.031}
		Suspension housing gusset		-	-	-	2.30 {0.0906}
		Package gusset		×	-	-	1.80 {0.0709}
		Side brace		-	-	-	1.20 {0.0472}
		Suspension housing upper		-	×	×	2.30 {0.0906}
		Anchor reinforcement		-	-	-	1.80 {0.0709}
38	Rear pillar (inner) component (lower)	Rear pillar (inner) No.2		-	-	×	0.65 {0.026}
		End plate		-	-	×	0.70 {0.028}
		Quarter panel reinforcement		-	-	-	1.20 {0.0472}
39	D-pillar reinforcement component	D-pillar reinforcement (upper)		-	-	-	1.20 {0.0472}
		Stay damper reinforcement		-	×	-	1.40 {0.0551}
40	D-pillar reinforcement (upper)			-	-	-	0.90 {0.035}
41	Rear pillar (outer)			-	-	×	0.70 {0.028}
42	Corner plate			-	-	×	0.70 {0.028}
43	Front fender set bracket			-	×	-	1.00 {0.0394}
44	Cab side frame (outer panel)			-	-	×	0.70 {0.028}
45	Cowl side reinforcement (rear) component	Cowl side reinforcement (rear)		-	×	×	1.60 {0.0630}
		Front fender bracket		-	-	×	1.40 {0.0551}
46	Rear fender panel (lower)			-	-	×	0.70 {0.028}
47	Front door panel (outer)			-	×	×	0.65 {0.026}
48	Rear door panel (outer)			-	×	×	0.65 {0.026}
49	Liftgate panel (outer)	Upper		-	-	×	0.70 {0.028}
		Lower		-	-	×	0.60 {0.024}
50	Dash panel (lower) component	Dash panel (lower)		-	×	×	1.20 {0.0472}
		Front frame (rear) reinforcement		×	-	×	1.40 {0.0551}
		Dash lower panel (center)		×	-	×	1.80 {0.0709}
		Dash side reinforcement		×	-	-	1.00 {0.0394}
		Tunnel junction		-	-	×	0.90 {0.035}
		Front mudguard bracket		-	×	×	1.20 {0.0472}
51	Dash and cowl component	Dash panel (upper)		-	-	×	0.65 {0.026}
		Step panel reinforcement		-	-	-	0.50 {0.020}
		Cowl gusset		-	-	-	0.70 {0.028}
		A/C bracket		-	-	-	1.20 {0.0472}
		Cowl bracket		-	-	×	0.50 {0.020}
52	Wiper bracket			-	×	×	1.40 {0.0551}
53	Cowl upper plate			-	×	×	1.40 {0.0551}
54	Front fender bracket			-	-	×	1.80 {0.0709}
55	Roof panel			-	-	-	0.75 {0.030}
56	Front header			-	×	-	0.65 {0.026}
57	Roof reinforcement No.1 (without sunroof)			-	-	-	0.55 {0.022}
58	Roof reinforcement No.2 (without sunroof)			×	-	-	1.00 {0.0394}
59	Roof reinforcement No.3			-	-	-	0.55 {0.022}
60	Roof reinforcement No.4			-	-	-	0.55 {0.022}
61	Roof reinforcement No.5			-	-	-	0.55 {0.022}
62	Roof reinforcement junction			-	-	-	0.55 {0.022}
63	Rear header component	Rear header		-	-	×	0.70 {0.028}
		Rear header (upper)		-	-	-	0.65 {0.026}
		Hinge reinforcement		×	-	-	1.60 {0.0630}
64	Seat bracket component	Seat bracket		×	-	-	1.60 {0.0630}
		Crossmember No.2.5		×	-	-	1.20 {0.0472}
65	Crossmember No.2			×	-	-	1.00 {0.0394}
66	Floor reinforcement No.2	LH		×	-	-	1.60 {0.0630}
		RH		×	-	-	2.00 {0.0787}
67	Floor reinforcement No.1	Front		×	-	-	1.60 {0.0630}
		Rear		-	×	-	1.00 {0.0394}
68	Front floor side panel			-	-	×	1.00 {0.0394}
69	Tunnel reinforcement component	Tunnel reinforcement		×	-	×	1.20 {0.0472}
		Instrument panel bracket		-	×	-	0.90 {0.035}
70	Front B frame	Front		×	-	×	1.80 {0.0709}
		Rear		×	-	×	1.20 {0.0472}
71	Side sill (inner) component	Side sill (inner)		×	-	×	1.40 {0.0551}
		Side sill reinforcement (front)		×	-	×	1.60 {0.0630}
72	Crossmember No.3 (upper) component	Crossmember No.3 (upper)		×	-	×	2.00 {0.0787}
		Crossmember No.3 reinforcement (side)		×	-	-	2.00 {0.0787}
		Tank bracket		-	×	×	1.00 {0.0394}
		Crossmember junction No.1 (rear)		-	×	×	1.00 {0.0394}
		Crossmember No.3 reinforcement (lower)		-	-	×	0.60 {0.024}
		Crossmember No.3 reinforcement (upper)		×	-	-	1.40 {0.0551}
73	Crossmember No.3 (lower)			-	-	×	0.70 {0.028}
74	Center floor panel			-	-	×	0.90 {0.035}
75	Rear floor front reinforcement component	Brace bracket		-	-	-	2.30 {0.0906}
		Rear floor reinforcement (outer)		-	-	-	2.30 {0.0906}
		Rear floor front reinforcement		-	×	-	0.90 {0.035}
		Rear floor reinforcement (inner)		-	-	-	1.20 {0.0472}
		Seat hinge reinforcement		-	×	-	1.60 {0.126}
76	Trunk floor panel component	Trunk floor panel		-	-	×	0.60 {0.024}
		Trunk floor reinforcement		-	-	×	1.00 {0.0394}
		Spare wheel bracket		-	-	-	1.00 {0.0394}
77	HU unit bracket (lower)			-	-	×	0.70 {0.028}
78	Jack bracket			-	-	-	1.20 {0.0472}
79	Temporary spare tire reinforcement			-	-	-	1.20 {0.0472}
80	Rear cross reinforcement			×	-	×	1.00 {0.0394}
81	Seat bracket			×	-	×	1.20 {0.0472}
82	Gusset No.4			-	-	×	1.00 {0.0394}
83	Crossmember No.4 (front)			-	×	×	1.00 {0.0394}
84	Crossmember No.4 (rear)			-	-	×	0.70 {0.028}
85	Rear side frame component (inner)	Rear frame reinforcement		×	-	×	0.90 {0.035}
		Center floor (upper)		×	-	×	1.60 {0.0630}
		Anchor reinforcement		-	-	-	1.20 {0.0472}
86	Rear side frame component (outer)	Rear side sill (inner)		×	-	×	1.80 {0.0709}
		Rear side frame (front)		×	-	×	1.80 {0.0709}
		Rear side frame (center)		×	-	×	1.80 {0.0709}
		Torque box C (rear)		-	-	×	2.00 {0.0787}
		Rear frame (front)		-	×	×	2.90 {0.114}
		Torque box C (front)		-	-	×	0.70 {0.028}
		Tiedown reinforcement		×	-	×	3.20 {0.126}
		Rear side frame (rear)		×	-	×	1.60 {0.0630}
		C frame reinforcement		×	-	×	1.60 {0.0630}
87	Rear bumper bracket			×	-	×	2.00 {0.0787}
88	Brace reinforcement			-	-	-	2.30 {0.0906}
89	Floor side panel No.1 (front)			×	-	×	1.60 {0.0630}
90	Rear floor cover			×	-	×	1.60 {0.0630}
91	Floor side panel No.1 (rear)			-	×	-	2.00 {0.0787}
92	Floor side panel No.2			-	-	×	0.70 {0.028}
93	Rear end panel component	Rear end panel		-	-	×	1.00 {0.0394}
		Rear end member		-	-	-	0.70 {0.028}
		Corner junction		-	-	-	0.90 {0.035}
		Trunk board bracket		-	-	-	1.00 {0.0394}
		Rear end member (side)		-	-	-	1.00 {0.0394}
		Bumper bracket		-	-	×	0.70 {0.028}
94	Rear bumper reinforcement (lower)			-	-	×	1.00 {0.0394}
95	Rear bumper reinforcement (center)			-	-	×	1.00 {0.0394}
