ULTRA HIGH-TENSION STEEL [CONSTRUCTION]

• Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.

• Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.

• Enhanced shock absorption has improved the safety.

• Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.

• When drilling welded parts, use a well-ground drill bit.

• After welding, inspect the weld strength. If adhesion is poor, perform arc welding (plug welding).

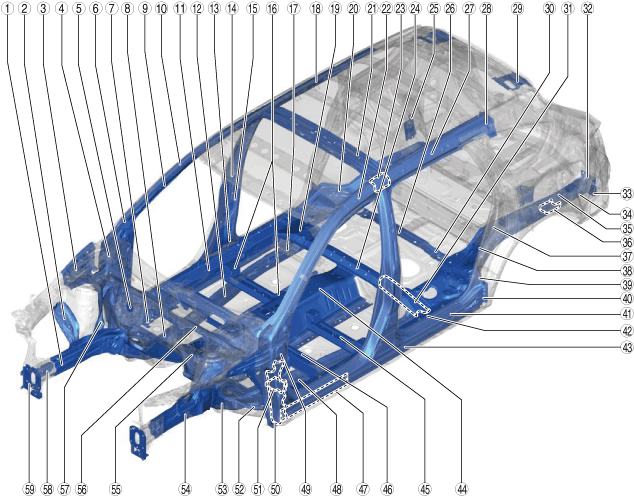

No.	Part name	Strength (MPa {kgf/cm², psi})
1	Front side frame (inner) (rear)	590 {6016, 85572}
2	Apron reinforcement No.3	590 {6016, 85572}
3	Cowl side reinforcement (front)	590 {6016, 85572}
4	Hinge pillar (inner)	590 {6016, 85572}
5	Side sill reinforcement (front)	590 {6016, 85572}
6	Front pillar reinforcement (lower)	590 {6016, 85572}
7	Floor reinforcement No.2	780 {7954, 113130}
8	Floor reinforcement No.1 (front)	780 {7954, 113130}
9	Front pillar (inner)	1180 {12032, 171145}
10	Front pillar reinforcement (upper)	780 {7954, 113130}
11	Side sill (inner)	980 {9993, 142137}
12	Front B frame (rear)	590 {6016, 85572}
13	Center pillar reinforcement (outer) (lower)	590 {6016, 85572}
14	Center pillar reinforcement (Inner)	980 {9993, 142137}
15	Center pillar reinforcement (outer) (upper)	980 {9993, 142137}
16	Seat bracket	590 {6016, 85572}
17	Rear side frame (front)	590 {6016, 85572}
18	Roof rail (inner) (front)	980 {9993, 142137}
19	Crossmember No.3 reinforcement (side)	590 {6016, 85572}
20	Rear frame reinforcement	590 {6016, 85572}
21	Roof reinforcement No.2	590 {6016, 85572}
22	Front pillar reinforcement (outer)	980 {9993, 142137}
23	Roof corner gusset	590 {6016, 85572}
24	Crossmember No.3 (upper)	590 {6016, 85572}
25	Package gusset	590 {6016, 85572}
26	Seat bracket	590 {6016, 85572}
27	Roof rail reinforcement	780 {7954, 113130}
28	C-pillar reinforcement No.1	780 {7954, 113130}
29	Hinge reinforcement	590 {6016, 85572}
30	Rear cross reinforcement	590 {6016, 85572}
31	Crossmember No.3 reinforcement (upper)	590 {6016, 85572}
32	Rear floor cover	780 {7954, 113130}
33	Rear bumper bracket	590 {6016, 85572}
34	Rear side frame (rear)	590 {6016, 85572}
35	Floor side panel No.1 (front)	780 {7954, 113130}
36	C-frame reinforcement	590 {6016, 85572}
37	Center floor (upper)	590 {6016, 85572}
38	Rear side frame (center)	590 {6016, 85572}
39	Rear side sill (inner)	590 {6016, 85572}
40	Side sill reinforcement rear	590 {6016, 85572}
41	Side sill reinforcement (rear)	980 {9993, 142137}
42	Tiedown reinforcement	590 {6016, 85572}
43	Side sill reinforcement	980 {9993, 142137}
44	Tunnel reinforcement	590 {6016, 85572}
45	Crossmember No.2.5	780 {7954, 113130}
46	Crossmember No.2	590 {6016, 85572}
47	Side sill reinforcement (front)	980 {9993, 142137}
48	Front B frame (front)	590 {6016, 85572}
49	Hinge reinforcement	590 {6016, 85572}
50	Hinge gusset (lower)	590 {6016, 85572}
51	Hinge gusset	590 {6016, 85572}
52	Front frame (rear) reinforcement	780 {7954, 113130}
53	Front frame (rear)	590 {6016, 85572}
54	Front side frame (outer) (rear)	590 {6016, 85572}
55	Dash lower panel (center)	590 {6016, 85572}
56	Dash side reinforcement	590 {6016, 85572}
57	Wheel apron reinforcement (rear)	590 {6016, 85572}
58	Front frame reinforcement (outer)	590 {6016, 85572}
59	Bumper bracket	590 {6016, 85572}
