FRONT SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008605900

Symbol Mark

ac8wzb00000176

Removal Procedure

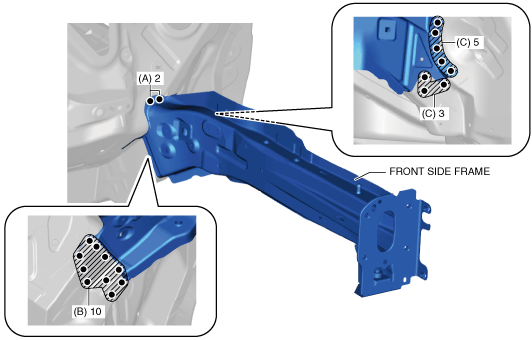

1.  Drill the 2 locations in area A shown in the figure.

2.  Drill the 10 locations in area B shown in the figure.

3.  Drill the 8 locations in area C shown in the figure.

ac8wzb00000177

4.  Remove the front side frame.
