FRONT SIDE FRAME INSTALLATION [PANEL REPLACEMENT]

id098008606000

Symbol Mark

ac8wzb00000178

Removal Procedure

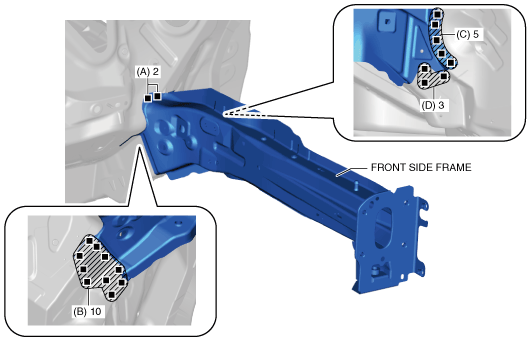

1.  Before installing the new part, drill holes for plug welding in 2 locations in area A, 5 locations in area C.

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3.  After temporarily installing the new parts, make sure the related parts fit properly.

4.  Plug welds in the 2 locations in area A shown in the figure.

5.  Plug welds in the 10 locations in area B shown in the figure.

6.  Plug welds in the 5 locations in area C shown in the figure.

7.  Plug welds in the 3 locations in area D shown in the figure and install the front side frame.

ac8wzb00000179
