TORQUE BOX INSTALLATION [PANEL REPLACEMENT]

id098008607200

Symbol Mark

ac8wzb00000185

Installation Procedure

1.  Before installing the new part, drill holes for plug welding in area A (LH: 24 locations, RH: 25 locations).

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3.  After temporarily installing the new parts, make sure the related parts fit properly.

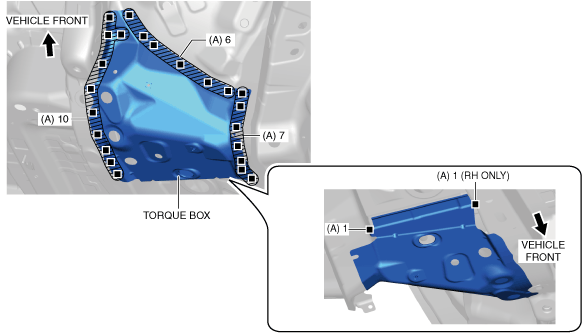

4.  Plug welds in area A (LH: 24 locations, RH: 25 locations) shown in the figure.

ac8wzb00000186

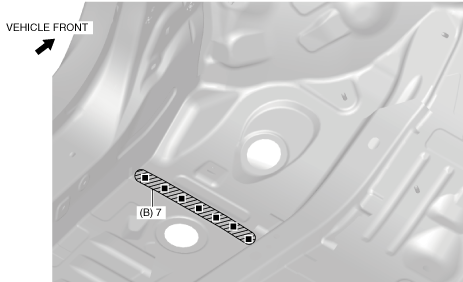

5.  Plug welds in the 7 locations in area B shown in the figure from the interior and install the torque box.

ac8wzb00000187
