CORNER PLATE REMOVAL [PANEL REPLACEMENT]

id098008610400

Symbol Mark

ac8wzb00000203

Removal Procedure

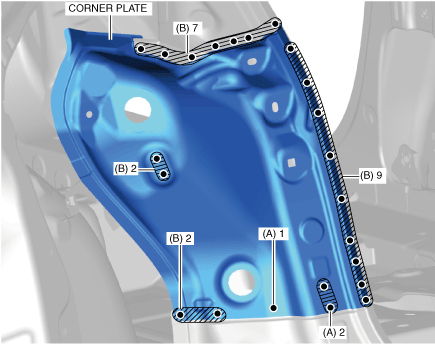

1.  Drill the spot welds in the 3 locations in area A shown in the figure.

Note

•  When drilling the spot welds in the 3 locations in area A shown in the figure, do not drill through-holes in consideration of the workability when installing

2.  Drill the spot welds in the 20 locations in area B shown in the figure.

ac8wzb00000232

3.  Remove the corner plate.
