REAR FENDER LOWER PANEL REMOVAL [PANEL REPLACEMENT]

id098008614100

Symbol Mark

ac8wzb00000198

Removal Procedure

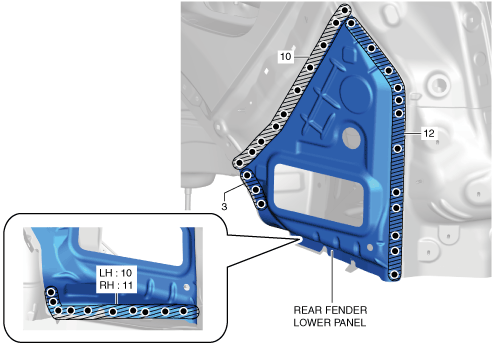

1.  Drill the spot welds in the 35 locations (LH), 36 locations (RH) shown in the figure.

ac8wzb00000199

2.  Use the scissors and cut the insulator.

ac8wzb00000308

3.  Remove the rear fender lower panel.
