REAR FENDER LOWER PANEL INSTALLATION [PANEL REPLACEMENT]

id098008614200

Symbol Mark

ac8wzb00000201

Installation Procedure

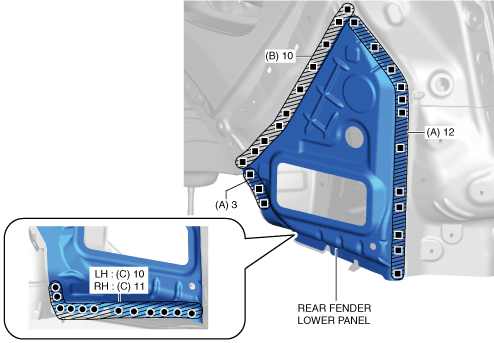

1.  Before installing the new part, drill holes for plug welding the 15 locations in area A.

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3.  After temporarily installing the new parts, make sure the related parts fit properly.

4.  Plug welds in the 15 locations in area A shown in the figure.

5.  Plug welds in the 10 locations in area B shown in the figure.

6.  Spot welds in area C (LH: 10 locations, RH: 11 locations) shown in the figure and install the rear fender lower panel.

ac8wzb00000202
