LIGHT BRACKET REMOVAL [PANEL REPLACEMENT]

id098008627100

Symbol Mark

ac5uub00000086

Removal Procedure

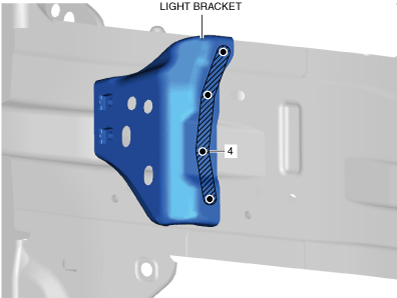

1.  Drill the 4 locations shown in the figure.

Note

•  When drilling the spot welds in the 4 locations shown in the figure, do not drill through-holes in consideration of the workability when installing.

ac8wzb00000156

2.  Remove the light bracket.
