FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008742100

Symbol Mark

ac8wzb00000071

Removal Procedure

LH

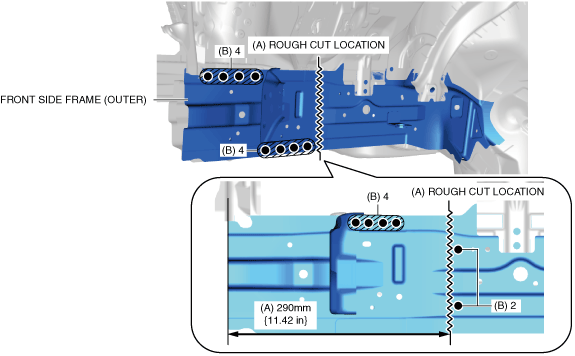

1.  Rough cut the area A shown in the figure.

2.  Drill the spot welds in the 14 locations in area B shown in the figure.

ac8wzb00000072

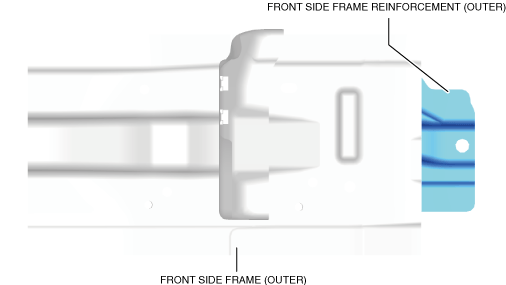

3.  Remove the front side frame (outer) and the front side frame reinforcement (outer) at the same time as shown in the figure.

ac8wzb00000073

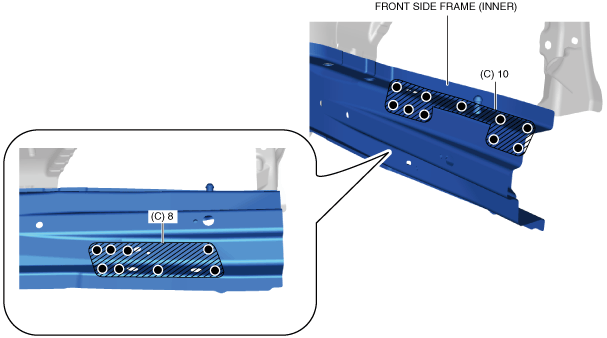

4.  Drill the spot welds in the 18 locations in area C shown in the figure.

ac8wzb00000074

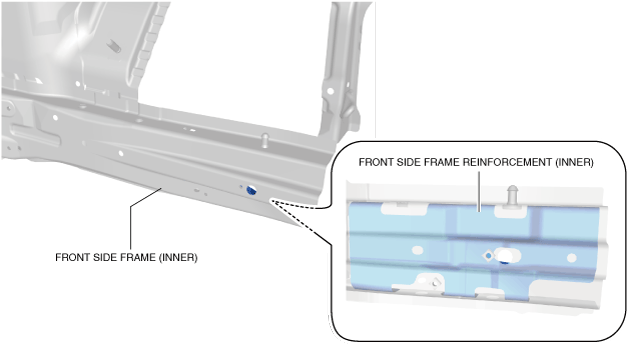

5.  Remove the front side frame reinforcement (inner) from the front side frame (inner).

ac8wzb00000075

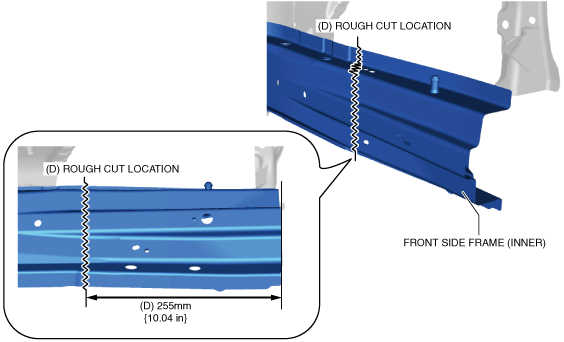

6.  Rough cut the area D shown in the figure.

ac8wzb00000076

7.  Remove the front side frame (inner).

RH

1.  Rough cut the area A shown in the figure.

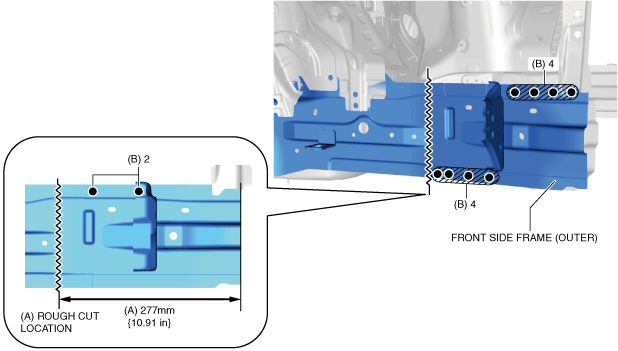

2.  Drill the spot welds in the 10 locations in area B shown in the figure.

ac8wzb00000077

3.  Remove the front side frame (outer).

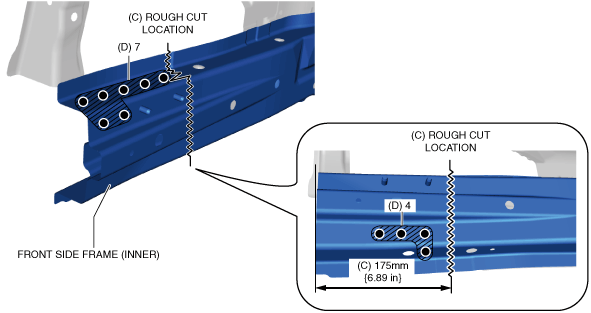

4.  Rough cut area C shown in the figure.

5.  Drill the spot welds in the 11 locations in area D shown in the figure.

ac8wzb00000078

6.  Remove the front side frame (inner).

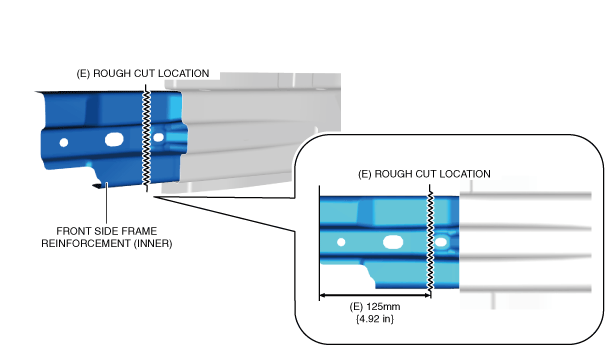

7.  Rough cut the area E shown in the figure.

ac8wzb00000079

8.  Remove the front side frame reinforcement (inner).
