FRONT FRAME (REAR) REMOVAL [PANEL REPLACEMENT]

id098008742500

Symbol Mark

ac8wzb00000192

Removal Procedure

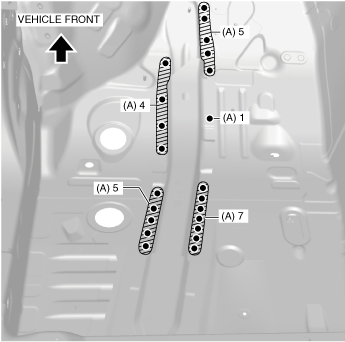

1.  Drill the spot welds in the 22 locations in area A shown in the figure from the interior.

ac8wzb00000266

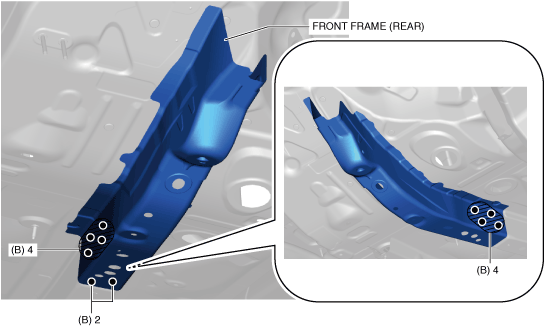

2.  Drill the spot welds in the 10 locations in area B shown in the figure.

ac8wzb00000267

3.  Remove the front frame (rear).
