FRONT FRAME (REAR) INSTALLATION [PANEL REPLACEMENT]

id098008742600

Symbol Mark

ac8wzb00000195

Installation Procedure

1.  Before installing the new part, drill holes for plug welding in 10 locations in area B.

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3.  After temporarily installing the new parts, make sure the related parts fit properly.

4.  Plug welds in the 22 locations in area A shown in the figure from the interior.

ac8wzb00000268

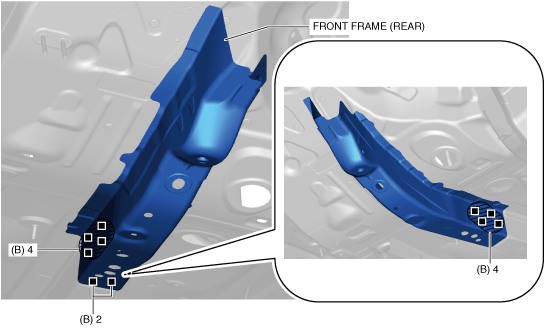

5.  Plug welds in the 10 locations in area B shown in the figure and install the front frame (rear).

ac8wzb00000269
