ROOF PANEL REMOVAL [PANEL REPLACEMENT]

id098008744300

Symbol Mark

ac8wzb00000206

Removal Procedure

1.  Drill the spot welds in the 10 locations in area A show in the figure.

2.  Drill the spot welds in the 122 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 122 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing

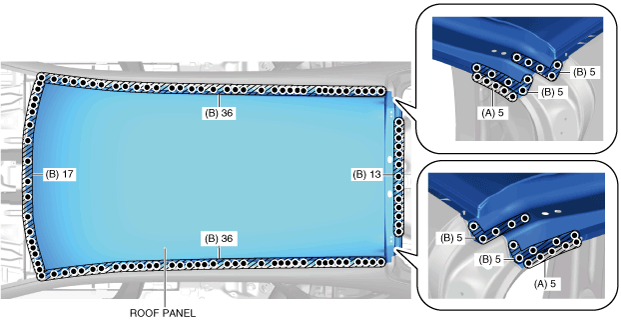

ac8wzb00000277

3.  Remove the roof panel.
