REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Symbol Mark

ac8wzb00000124

Removal Procedure

Caution

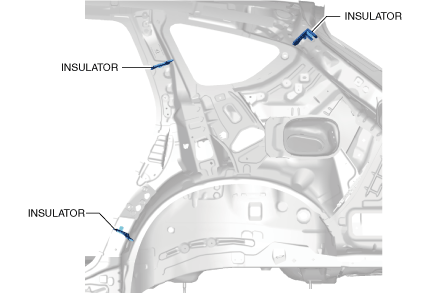

•  If cutting work is done using flame, a fire could occur because insulators are inserted in the locations shown in the figure. When performing the cutting work near the insulator insert areas, avoid using flame and use an air saw or drill.

ac8wzb00000125

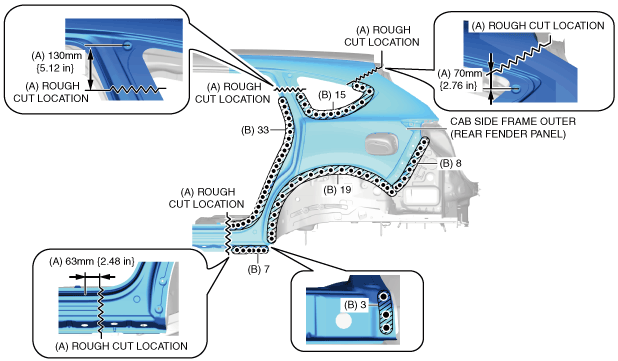

1.  Rough cut the 3 locations in area A shown in the figure.

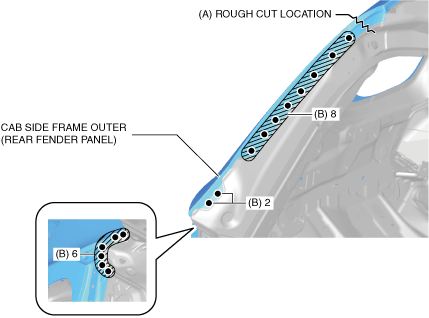

2.  Drill the spot welds in the 101 locations in area B shown in the figure.

ac8wzb00000306

ac8wzb00000307

3.  Remove the cab side frame outer (rear fender panel).
