REAR PILLAR (OUTER) INSTALLATION [PANEL REPLACEMENT]

id098008747300

Symbol Mark

ac8wzb00000210

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

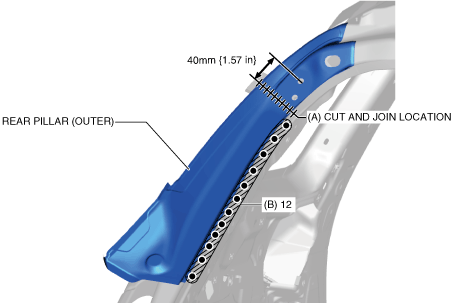

3.  Cut and joint the location in area A shown in the figure.

4.  Spot welds in the 12 locations in area B shown in the figure and install the rear pillar (outer).
