REAR SIDE FRAME INSTALLATION [PANEL REPLACEMENT]

id098008801300

Symbol Mark

ac8wzb00000275

Installation Procedure

1. Before installing the new part, drill holes for plug welding the 11 locations in area C.

2. When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3. After temporarily installing the new part, make sure the related parts fit properly.

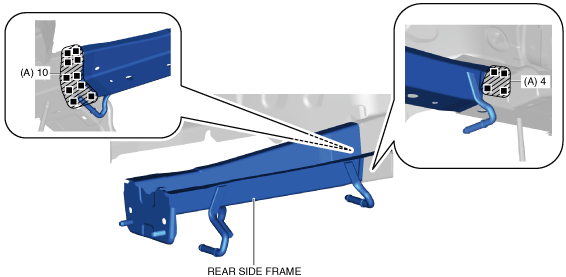

4. Plug welds in the 14 locations in area A shown in the figure and install the rear side frame.

ac8wzb00000136

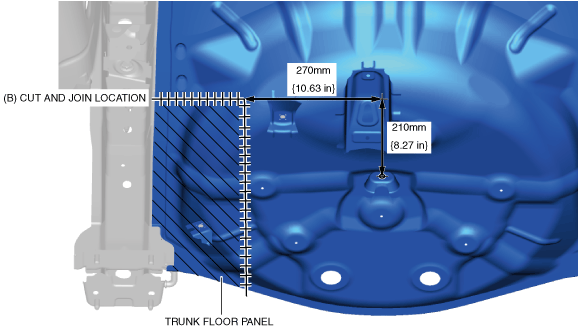

5. Cut and joint the part to area B shown in the figure and install a part of the trunk floor panel.

ac8wzb00000137

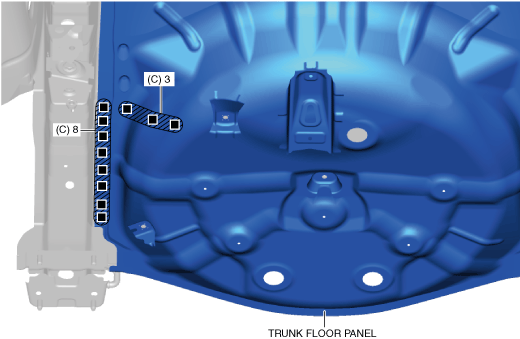

6. Plug welds in the 11 locations in area C shown in the figure.

ac8wzb00000138
