FRONT FENDER JUNCTION REMOVAL [PANEL REPLACEMENT]

id098008828300

Symbol Mark

ac8wzb00000172

Removal Procedure

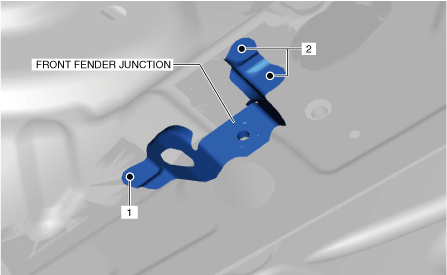

1.  Drill the spot welds in the 3 locations shown in the figure.

ac8wzb00000173

2.  Remove the front fender junction.
