ANCHORAGE BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008839100

Symbol Mark

ac8wzb00000297

Installation Procedure

1.  Before installing the new part, drill holes for plug welding the 5 locations in area A.

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3.  After temporarily installing the new part, make sure the related parts fit properly.

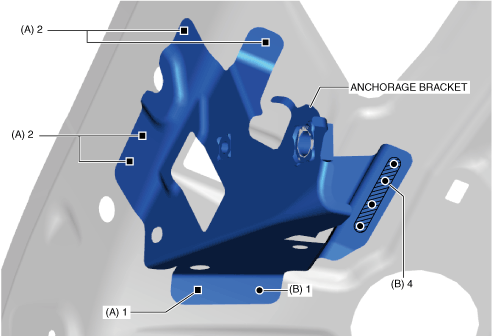

4.  Plug welds in the 5 locations in area A shown in the figure.

5.  Plug welds in the 5 locations in area B shown in the figure and install the anchorage bracket.

ac8wzb00000298
