FRONT FENDER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008900300

Symbol Mark

ac8wzb00000152

Removal Procedure

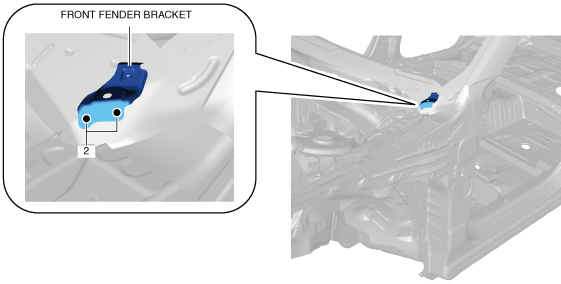

1.  Drill the spot welds in the 2 locations shown in the figure.

ac8wzb00000233

2.  Remove the front fender bracket.
