FRONT FENDER BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008900400

Symbol Mark

ac8wzb00000314

Installation Procedure

1.  Before installing the new part, drill holes for plug welding.

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3.  After temporarily installing the new part, make sure the related parts fit properly.

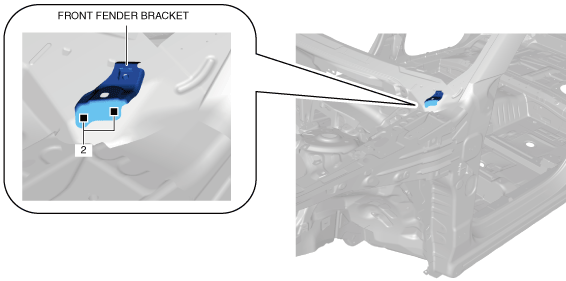

4.  Plug welds in the 2 locations shown in the figure and install the front fender bracket.
