SHROUD SIDE MEMBER REMOVAL [PANEL REPLACEMENT]

id098008919000

Symbol Mark

ac5uub00000104

Removal Procedure

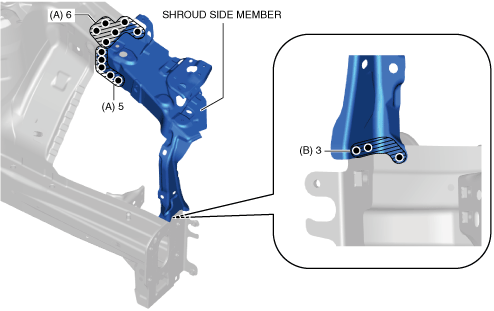

1.  Drill the spot welds in the 11 locations in area A shown in the figure.

2.  Drill the spot welds in the 3 locations in area B shown in the figure.

ac8wzb00000003

3.  Remove the shroud side member.
