SHROUD UPPER REINFORCEMENT INSTALLATION [PANEL REPLACEMENT]

id098008928000

Symbol Mark

ac5uub00000210

Removal Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3.  After temporarily installing the new parts, make sure the related parts fit properly.

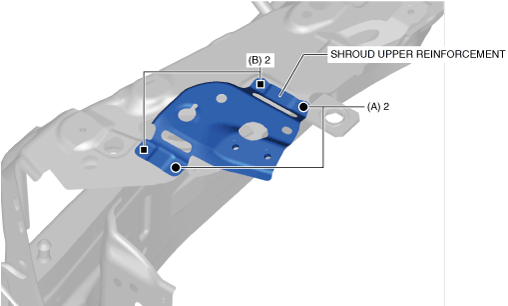

4.  Plug welds in the 4 locations shown in the figure and install the shroud upper reinforcement.

ac8wzb00000251
