SIDE MEMBER REMOVAL [PANEL REPLACEMENT]

id098008928100

Symbol Mark

ac8wzb00000188

Removal Procedure

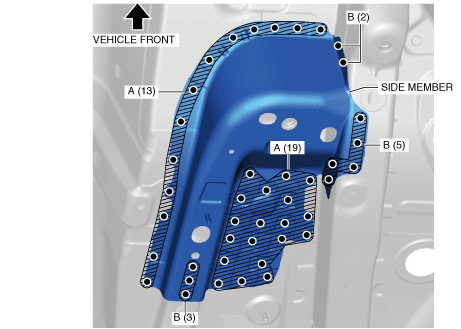

1.  Drill the spot welds in the 32 locations in area A shown in the figure.

2.  Drill the spot welds in the 10 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 10 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

ac8wzb00000264

3.  Remove the side member.
