COWL SIDE REINFORCEMENT (FRONT) COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008950000

Symbol Mark

ac8wzb00000159

Removal Procedure

1.  Drill the spot welds in the 27 locations in area A shown in the figure.

2.  Drill the spot welds in the 9 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 9 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

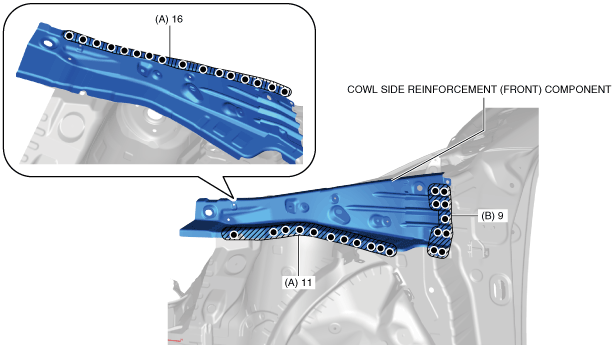

ac8wzb00000252

3.  Remove the cowl side reinforcement (front) component.
