COWL SIDE REINFORCEMENT (FRONT) COMPONENT INSTALLATION [PANEL REPLACEMENT]

id098008950100

Symbol Mark

ac8wzb00000160

Installation Procedure

1.  Before installing the new part, drill holes for plug welding in 9 locations in area B.

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3.  After temporarily installing the new parts, make sure the related parts fit properly.

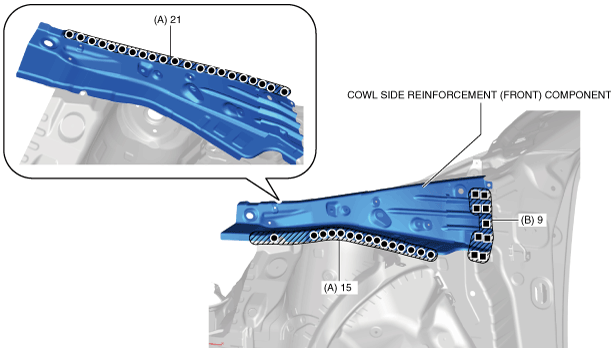

4.  Spot welds in the 36 locations in area A shown in the figure.

5.  Plug welds in the 9 locations in area B shown in the figure and install the cowl side reinforcement (front) component.

ac8wzb00000161
