COWL SIDE REINFORCEMENT (REAR) REMOVAL [PANEL REPLACEMENT]


id098008950200


Symbol Mark

ac8wzb00000162

Removal Procedure

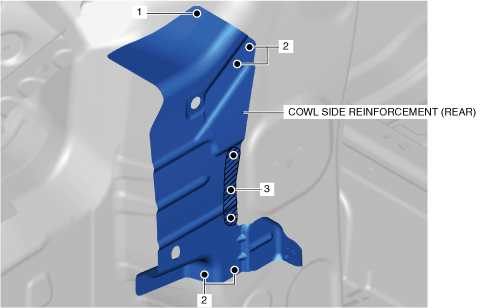

1.  Drill the spot welds in the 8 locations shown in the figure.

Note
•  When drilling the spot welds in the 8 locations shown in the figure, do not drill through-holes in consideration of the workability when installing.
ac8wzb00000163

2.  Remove the cowl side reinforcement (rear).
