COWL UPPER PLATE REMOVAL [PANEL REPLACEMENT]

id098008957100

Symbol Mark

ac8wzb00000180

Removal Procedure

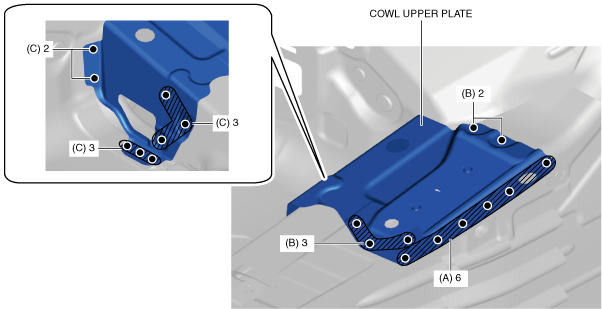

1.  Drill the spot welds in the 6 locations in area A shown in the figure.

2.  Drill the spot welds in the 5 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 5 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

3.  Drill the spot welds in the 8 locations in area C shown in the figure from engine room side.

ac8wzb00000262

4.  Remove the cowl upper plate.
