WIPER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008968800

Symbol Mark

ac5uub00000226

Removal Procedure

1.  Drill the spot welds in the 8 locations in area A shown in the figure.

Note

•  When drilling the spot welds in the 8 locations in area A shown in the figure, do not drill through-holes in consideration of the workability when installing.

2.  Drill the spot welds in the 3 locations in area B shown in the figure.

3.  Drill the spot weld in the 1 location in area C shown in the figure from engine room side.

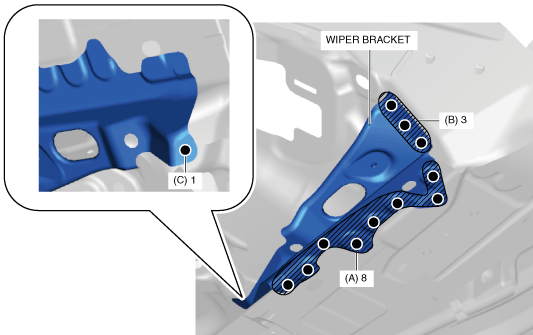

ac8wzb00000010

4.  Remove the wiper bracket.
