WIPER BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008968900

Symbol Mark

ac5uub00000286

Installation Procedure

1.  Before installing the new part, drill holes for plug welding.

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3.  After temporarily installing the new parts, make sure the related parts fit properly.

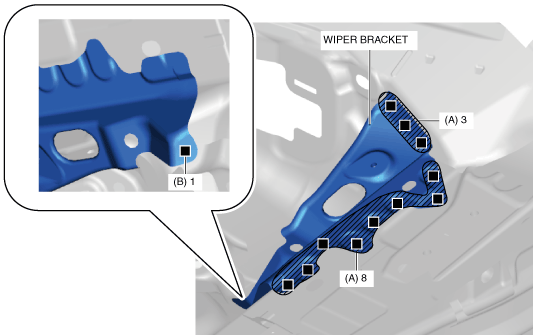

4.  Plug welds in the 11 locations in area A shown in the figure.

5.  Plug weld in the 1 location in area B shown in the figure from engine room side and install the wiper bracket.
