BUMPER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008999500

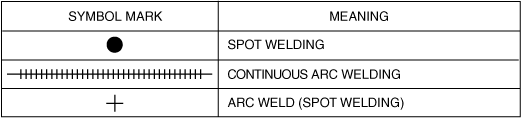

Symbol Mark

ac5wzb00000356

Removal Procedure

1.  Grind the continuous arc welds in the 8 locations in area A shown in the figure using a disc grinder.

Caution

•  If the front side frame flange is damaged when grinding the continuous arc welds in the 8 locations in area A shown in the figure, the integrity of the bumper bracket installation could be compromised. For the 8 locations in area A, look at the grinding locations while performing the work so the front side frame does not get damaged.

2.  Drill the spot welds in the 3 locations in area B shown in the figure.

3.  Grind the arc weld in the 1 location in area C shown in the figure.

4.  Drill the spot welds in the 2 locations in area D shown in the figure.

5.  Drill the spot welds in the 3 locations in area E shown in the figure.

Note

•  When drilling the spot welds in the 3 locations in area E shown in the figure, do not drill through-holes in consideration of the workability when installing.

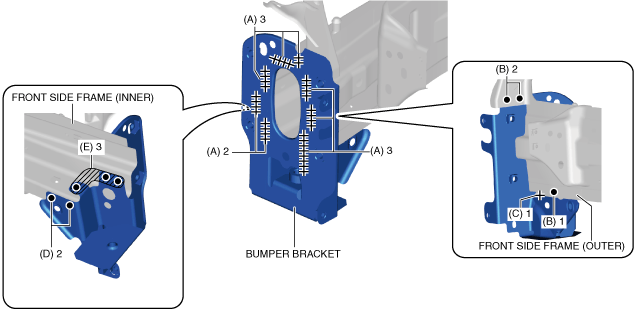

ac8wzb00000001

6.  Remove the bumper bracket.
