DAMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]

id098009745700

•  After repairing the body, attach the sound damping sheet to the location shown in the figure for noise insulation.

VIN: JM0

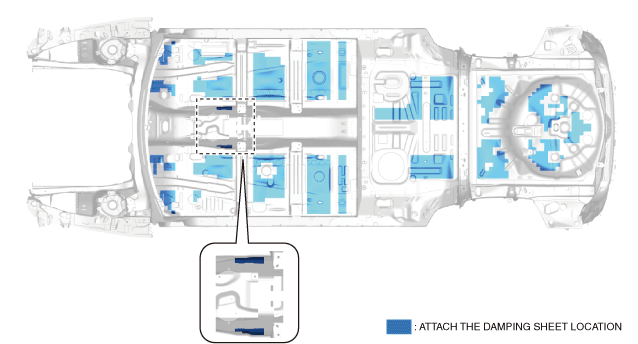

VIN serial No. 100001-199999

ac8wzb00000027

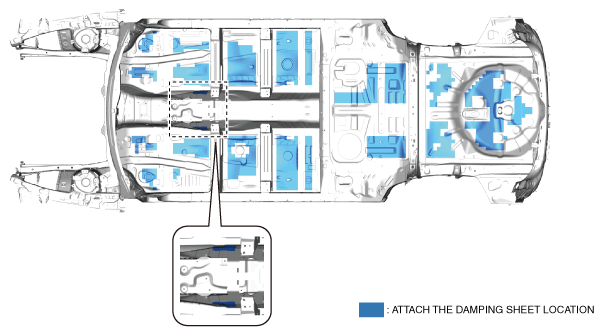

VIN serial No. 200001-299999

ac8wzb00000316


VIN serial No. 300001-

ac8wzb00000319

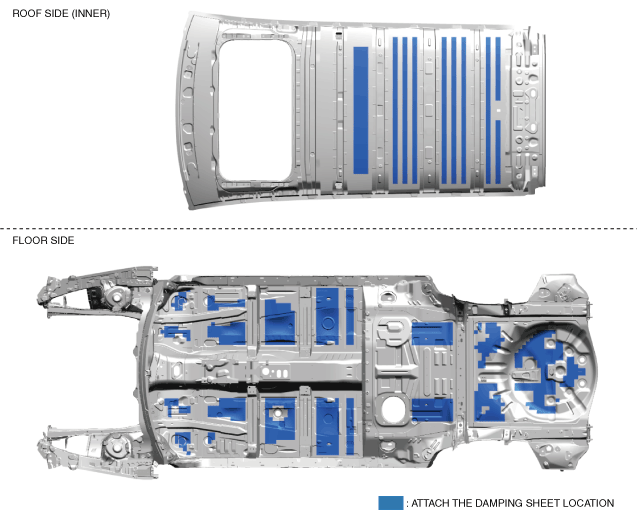

VIN: JM6

ac8wzb00000320

VIN: PP1

ac8wzb00000317
