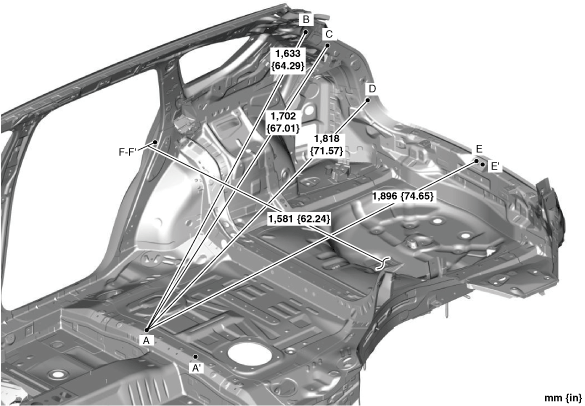

ROOM STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]
id098010746200
ac8wzb00000035
|
ac8wzb00000239
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Crossmember No.3 datum hole
|
Φ8 {0.3}
|
|
B
|
C-pillar trim installation hole
|
Φ8.6 {0.34}
|
|
C
|
C-pillar trim installation hole
|
Φ8.6 {0.34}
|
|
D
|
Trunk side trim installation hole
|
Φ8.6 {0.34}
|
|
E
|
Liftgate striker installation nut
|
M8
|
|
F
|
Rear door striker installation nut
|
M8
|
