ADAPTIVE LED HEADLIGHTS CONTROL MODULE

id151100001600

Purpose

Function

Surroundings and vehicle conditions determination function

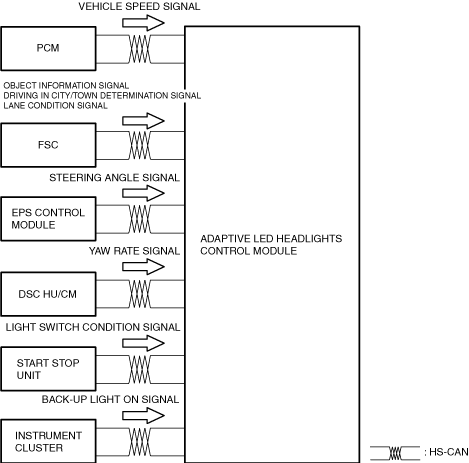

•  The adaptive LED headlights control module determines the surroundings and vehicle conditions based on the following signals.

ac5wzn00003713

Automatic configuration function

•  When the ignition is switched ON (engine off or on) after the adaptive LED headlights control module is replaced, the adaptive LED headlights control module reads the vehicle specification information sent via CAN communication from the instrument cluster, and stores the vehicle specification information.

On-board diagnostic function

•  The adaptive LED headlights control module is equipped with an on-board diagnosis function which records DTCs in the event of a malfunction.

Structure/Construction

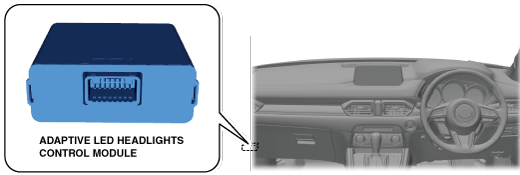

•  The adaptive LED headlights control module is located inside the dashboard.

ac8wzn00000803

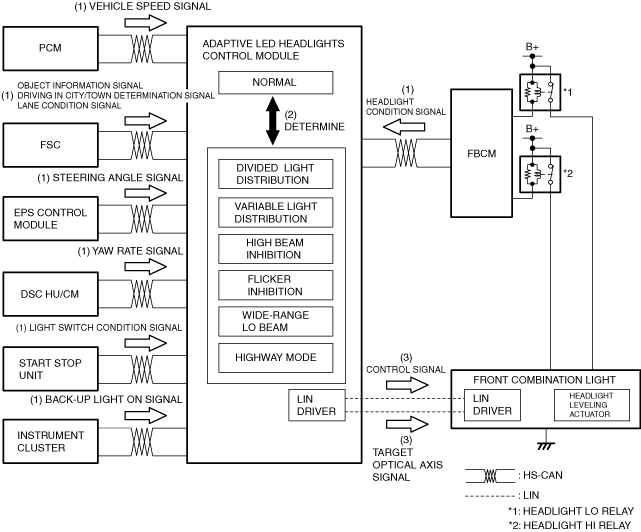

Operation

1.  The adaptive LED headlights control module receives (1) each signal from each module.

2.  The adaptive LED headlights control module determines (2) the surroundings and vehicle conditions based on the received each signal.

3.  The adaptive LED headlights control module sends (3) a control signal or target optical axis signal to the front combination light based on the determination result.

ac8wzn00000804

Fail-safe

DTC No.	Fail-safe
B1437:86	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
B1437:87	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
B1439:86	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
B1439:87	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
B1D00:13	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
B1D01:13	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
B1D02:86	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
B1D02:87	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
B1D03:86	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
B1D03:87	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
C0051:86	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
C0061:54	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position.
U0001:88	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U0100:00	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U0121:00	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
U0131:00	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
U0140:00	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U0155:00	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
U0214:00	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U023A:00	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
U0320:09	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
U0415:68	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
U0420:68	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
U0423:68	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
U0515:68	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U053B:68	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  Control of the headlight auto leveling system is continued.
U2005:86	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U2300:54	•  Control of the adaptive LED headlights system is continued. •  Control of the headlight auto leveling system is continued.
U2300:55	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U2300:56	•  Control of the adaptive LED headlights system is continued. •  Control of the headlight auto leveling system is continued.
U3000:42	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U3000:49	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U3003:16	•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM)) •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U3003:17	•  Control of the adaptive LED headlights system is continued. •  The headlight leveling actuator is stopped at the position when the malfunction is determined.
