•  The lane-keep assist system can be turned on or off optionally by the driver.

•  The switch operation signal is sent to the instrument cluster.

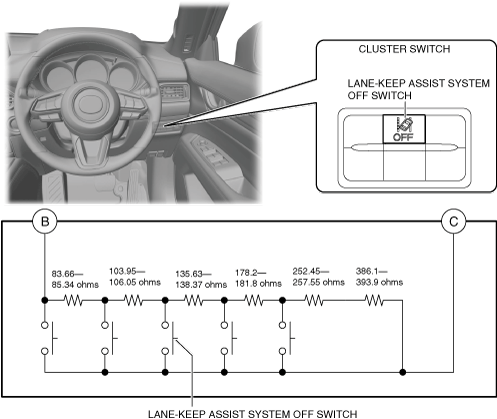

•  The lane-keep assist system OFF switch is built into the cluster switch.

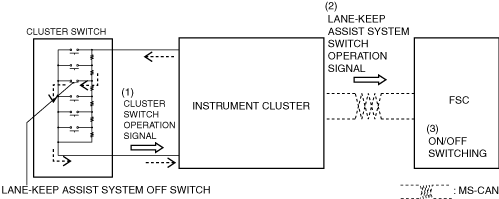

1.  When the lane-keep assist system OFF switch is operated, a cluster switch operation signal is sent (1) to the instrument cluster.

2.  The instrument cluster sends (2) the lane-keep assist system OFF switch operation signal to the forward sensing camera (FSC) based on the switch operation signal (detected voltage).

3.  When the FSC receives the lane-keep assist system OFF switch operation signal from the instrument cluster, it switches the lane-keep assist system on/off (3).

ac5wzn00004093

•  Not applicable
