MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION) INDICATOR LIGHT

id151300004100


Purpose

•  The Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator light notifies the driver that stop hold control is operating.

Functions

•  The instrument cluster turns the Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator light on based on the stop hold control status indication request signal sent from the radar unit via CAN communication.

Structure/Construction

•  The Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator light is located in the instrument cluster.
ac9wzn00001513

Operation

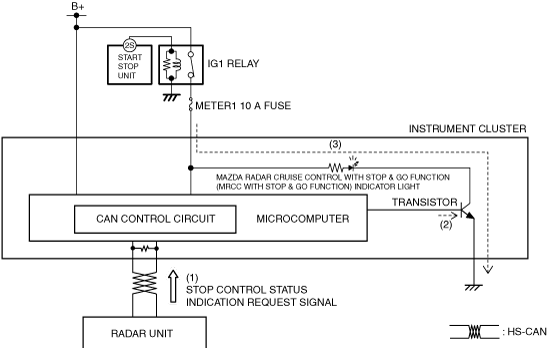

1.  The instrument cluster receives (1) a stop hold control status indication request signal from the radar unit via the CAN signal.

2.  The instrument cluster turns the transistor on (2) based on the stop hold control status indication request signal.

3.  When the transistor turns on, a ground circuit with the Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator light is established, and the Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator light turns on (3).

ac5wzn00004413

Fail-safe

•  Not applicable
