SMART CITY BRAKE SUPPORT (SCBS) INDICATION

id151300005300


Purpose/Function

•  The Smart City Brake Support (SCBS) indication notifies the driver that the Smart City Brake Support (SCBS) is operating (brake control (SCBS brake) is operating).

Construction

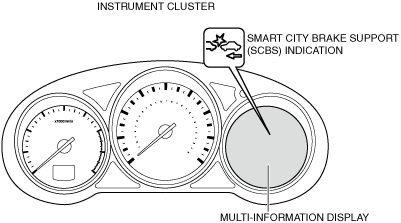

•  The Smart City Brake Support (SCBS) indication is displayed in the multi-information display.
ac8wzn00000367

Operation

1.  The Forward Sensing Camera (FSC) sends (1) a Smart City Brake Support (SCBS) indication request signal to the instrument cluster.

2.  When the instrument cluster receives the Smart City Brake Support (SCBS) indication request signal, it displays (2) the Smart City Brake Support (SCBS) indication in the multi-information display.

ac5uun00002899

Fail-safe

•  Not applicable
