ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5]

id0110s6806900


No.1 Engine Mount

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

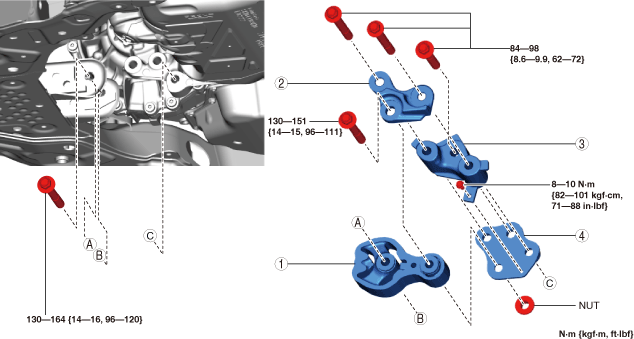

ac8wzw00003751

1
No.1 engine mount rubber
(See No.1 engine mount rubber removal note.)
(See No.1 engine mount installation note.)
2
Bracket Plate (No.1)
(See No.1 engine mount installation note.)
3
No.1 engine mount bracket
(See No.1 engine mount installation note.)
4
Bracket plate (No.2)
(See No.1 engine mount installation note.)


No.1 engine mount rubber removal note

1.  Loosen the bolts shown in the figure.

ac8wzw00003752

Note
•  The bracket plate No.1 can move slightly by loosening the bolts shown in the figure and the No.1 engine mount rubber can be easily removed.

2.  Remove the bolts shown in the figure.

ac8wzw00003753

3.  Remove the No.1 engine mount rubber.


No.1 engine mount installation note

1.  Install the following parts and temporarily tighten the installation bolts shown in the figure.

•  No.1 engine mount bracket
•  Bracket plate No.1
•  Bracket plate No.2
ac8wzw00003754

2.  Tighten the bolt shown in the figure.

ac8wzw00003755

Tightening torque
8—10 N·m {82—101 kgf·cm, 71—88 in·lbf}

3.  Install the No.1 engine mount rubber and temporarily tighten the installation bolts.

ac8wzw00003756

4.  Tighten the bolts in the order shown in the figure.

ac8wzw00003757

Tightening torque
84—98 N·m {8.6—9.9 kgf·m, 62—72 ft·lbf}

5.  Tighten the bolts shown in the figure.

ac8wzw00003756

Tightening torque
Bolt A: 131—151 N·m {14—15 kgf·m, 97—111 ft·lbf}
Bolt B: 130—164 N.m {14—16 kgf.m, 96—120 ft.lbf}


No.3 Engine Mount

Caution
•  Slots have been adopted for the No.3 engine mount installation holes. If the No.3 engine mount is deviated from the original position when installing the No.3 engine mount, engine noise or vibration could increase. Before removing the No.3 engine mount, place alignment marks on the No.3 engine mount and body so that they can be assembled to the same positions as before removal.

1.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

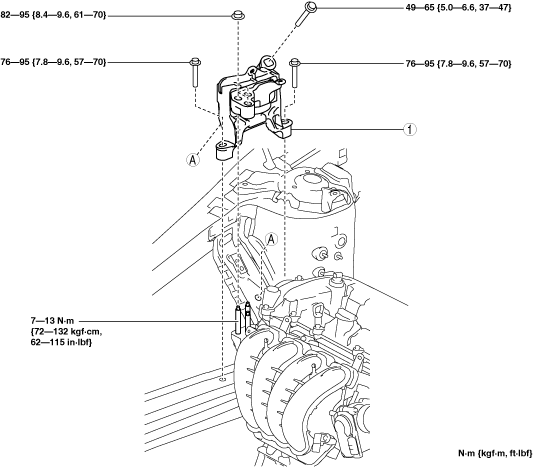

ac5wzw00002797

1
No.3 engine mount
(See No.3 Engine Mount.)
(See No.3 Engine Mount.)


No.3 engine mount removal note

1.  Remove the clips shown in the figure and set the ground cable aside.

ac5uuw00006934

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

Caution
•  To prevent deformation of the oil pan, support the engine using the following methods.
―  When using an engine lifter, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan to support the oil pan.
―  When using a garage jack, place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover and support the oil pan.

3.  Before removing the No.3 engine mount, support the engine (oil pan) using a commercially available engine lifter or garage jack.

ac5uuw00006935

4.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

ac5uuw00006936

Note
•  Paint so that the No.3 engine mount is framed on the body side and the outline of the nut is framed on the No.3 engine mount side.

5.  Remove the No.3 engine mount.


No.3 engine mount installation note

Note
•  When replacing the No.3 engine mount, place a mark at the same position as the one placed before removal.
•  If the No.3 engine mount nut is loosened, tighten the engine front cover stud bolts because they may have loosened.

1.  Tighten the engine front cover stud bolts.

ac5uuw00003260

Tightening torque
7—13 N·m {72—132 kgf·cm, 62—115 in·lbf}

2.  Temporarily tighten the No.3 engine mount installation bolts and nuts using the following procedure:

(1)  Align the alignment marks on the body side and No.3 engine mount, and temporarily tighten the bolts shown in the figure.
ac5uuw00006995

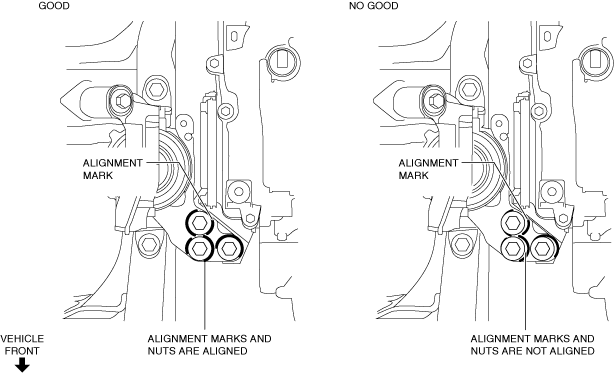

(2)  Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No.3 engine mount and nuts.
•  If the alignment marks are not aligned, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.
ac5uuw00006938

3.  Tighten the No.3 engine mount installation bolts and nuts in the order shown in the figure.

ac5uuw00006939

Tightening torque

Installation position

Tightening torque
1
76—95 N·m {7.8—9.6 kgf·m, 57—70 ft·lbf}
2
82—95 N·m {8.4—9.6 kgf·m, 61—70 ft·lbf}
3
49—65 N·m {5.0—6.6 kgf·m, 37—47 ft·lbf}

4.  Remove the engine lifter or garage jack.

5.  Install the ground cable to the No.3 engine mount.

ac5uuw00006934


No.4 Engine Mount

Caution
•  Slots have been adopted for the No.4 engine mount bracket installation holes. If the No.4 engine mount bracket is deviated from the original position when installing the No.4 engine mount bracket, engine noise or vibration could increase. Before removing the No.4 engine mount bracket, place alignment marks on the No.4 engine mount bracket so that they can be assembled to the same positions as before removal.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

3.  Remove the PCM component. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

4.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

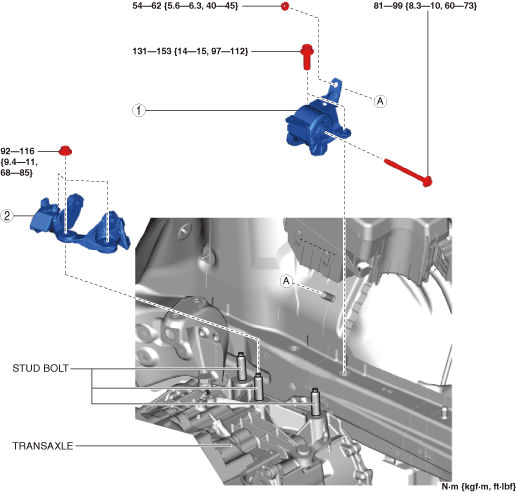

ac8wzw00003776

1
No.4 engine mount rubber
(See No.3 engine mount installation note.)
(See No.4 engine mount bracket removal note.)
2
No.4 engine mount bracket
(See No.4 Engine Mount.)
(See No.4 engine mount rubber removal note.)


No.4 engine mount rubber removal note

1.  Loosen the battery tray bracket installation bolts.

ac5uuw00006941

2.  Set front wiring harness protector No.2 aside in the direction of the arrow shown in the figure. (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION.)

ac5uuw00006942

3.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

Caution
•  To prevent damage to the transaxle, support the transaxle using the following methods.
―  Place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover and support the oil pan.
ac5uuw00006943

4.  Before removing the No.4 engine mount rubber, support the transaxle using a commercially available engine lifter or garage jack.

5.  Remove the No.4 engine mount rubber.


No.4 engine mount bracket removal note

1.  Remove the bolt shown in the figure and set the ground cable aside.

ac5uuw00006945

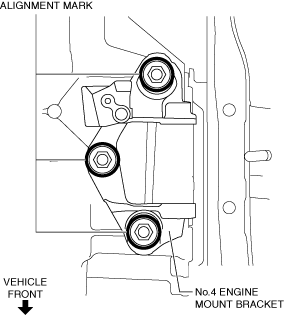

2.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

ac5uuw00006947

Note
•  Paint so that the outline of the nut is framed on the bracket side.

3.  Remove the No.4 engine mount bracket.


No.4 engine mount bracket installation note

Note
•  When replacing the No.4 engine mount bracket, place a mark at the same position as the one placed before removal.
•  If the No.4 engine mount bracket nut is loosened, tighten the transaxle stud bolts because they may have loosened.

1.  Tighten the transaxle stud bolts.

ac5uuw00006949

Tightening torque
15—25 N·m {1.6—2.5 kgf·m, 12—18 ft·lbf}

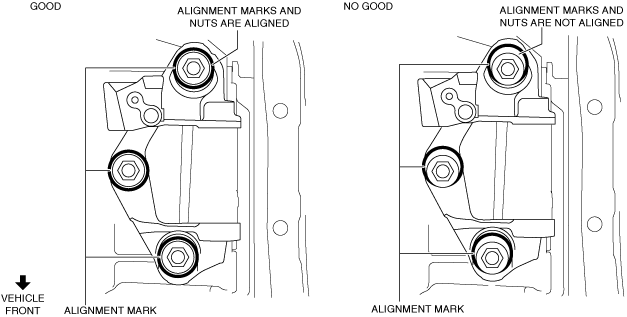

2.  Align the alignment marks on the No.4 engine mount bracket and nuts, and temporarily tighten the nuts shown in the figure.

ac5uuw00006951

3.  Tighten the No.4 engine mount bracket installation nuts in the order shown in the figure.

ac5uuw00006953

Tightening torque
92—116 N·m {9.4—11 kgf·m, 68—85 ft·lbf}

4.  Install the ground cable to the No.4 engine mount bracket.

ac5uuw00006945

Tightening torque
9—12 N·m {92—122 kgf·cm, 80—106 in·lbf}


No.4 engine mount rubber installation note

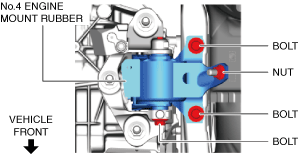

1.  Install the No.4 engine mount rubber and temporarily tighten the bolts and nut shown in the figure.

ac5uuw00006955

2.  Tighten the No.4 engine mount rubber installation bolts and nut in the order shown in the figure.

ac5uuw00006957

Tightening torque

Installation position

Tightening torque
1, 2
131—153 N·m {14—15 kgf·m, 97—112 ft·lbf}
3
54—62 N·m {5.6—6.3 kgf·m, 40—45 ft·lbf}
4
81—99 N·m {8.3—10 kgf·m, 60—73 ft·lbf}

3.  Remove the engine lifter or garage jack.

4.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

5.  Install the front wiring harness protector No.2. (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION.)

ac5uuw00006958

6.  Tighten the battery tray bracket installation bolts in the order shown in the figure.

ac5uuw00006959

Tightening torque
22—30 N·m {2.3—3.0 kgf·m, 17—22 ft·lbf}
