FUEL SYSTEM [SKYACTIV-G 2.5]

id0114za002600


Outline

•  A multiple hole type fuel injector has been adopted which provides higher fuel injection accuracy for improved fuel efficiency and output.
•  Piston movement-compression by the 4-head cam inside the high pressure fuel pump heightens the fuel pressure, achieving improved fuel efficiency and output.

Structural View

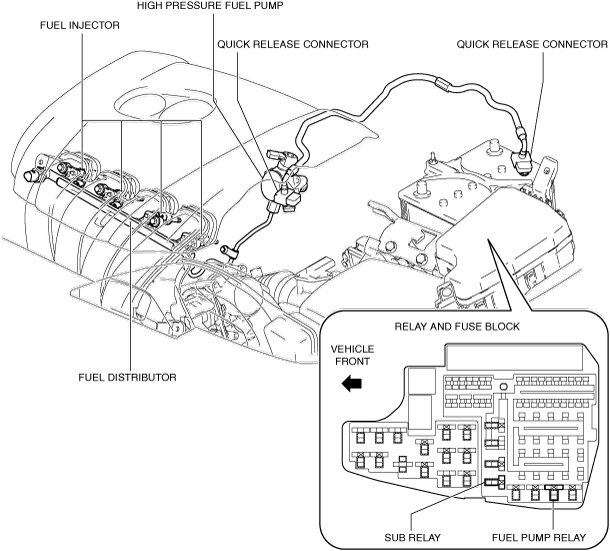

Engine compartment side

am6xun00004663


Fuel tank side

ac8wzn00001029

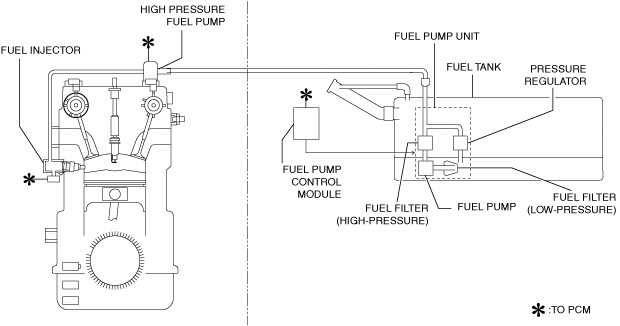

System Diagram

ac8wzn00001499

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Return-less fuel system
(See RETURNLESS FUEL SYSTEM [SKYACTIV-G 2.5].)
Fuel pump unit
(See FUEL PUMP UNIT [SKYACTIV-G 2.5].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 2.5].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 2.5].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-G 2.5].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-G 2.5].)
Fuel tank
(See FUEL TANK [SKYACTIV-G 2.5].)
Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 2.5].)
Fuel pump relay
(See FUEL PUMP RELAY [SKYACTIV-G 2.5].)
Sub relay
(See SUB RELAY [SKYACTIV-G 2.5].)
Fuel pump control module
(See FUEL PUMP CONTROL MODULE [SKYACTIV-G 2.5].)
Quick connector (fuel system)
(See QUICK RELEASE (FUEL SYSTEM) CONNECTOR [SKYACTIV-G 2.5].)


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Pressure regulator control pressure
(kPa {kgf/cm2, psi})
Approx. 430 {4.38, 62.4}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
72.0 {19.0, 15.8}


Fuel type

Fuel

Research Octane Number

Country
Premium unleaded fuel
95 or above
General (R.H.D.) specs.
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000*)
90 or above
Except General (R.H.D.) specs.

*  :Australia
