OIL SEAL (DIFFERENTIAL) REPLACEMENT [FW6A-EL]

id0517h1118800

Special Service Tool (SST)

49 U027 003

Oil Seal Installer

49 G030 797

Handle

(Part of 49 G030 795)

49 B025 001

Body

[FW6AX-EL]

Replacement Part

Oil seal

Quantity: 1

Location of use: Automatic transaxle (Transaxle case side)

Oil seal

Quantity: 1

Location of use: Automatic transaxle (Converter housing side)

Transaxle Case Side

1. Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL].)

3. Disconnect the front drive shaft (LH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4. Remove the oil seal using a tape-wrapped flathead screwdriver.

ac5uuw00004637

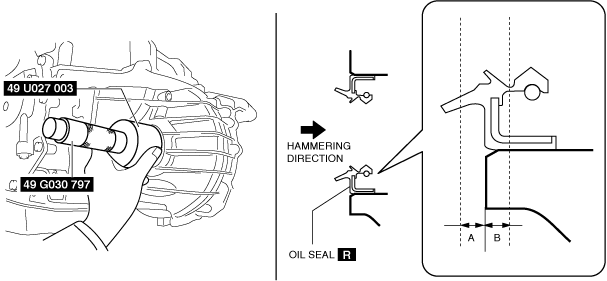

5. Using the SSTs and a hammer, install a new oil seal.

ac5uuw00006507

A: 0.5 mm {0.02 in}

B: 0.8 mm {0.03 in}

6. Coat the lip of the oil seal with ATF.

Caution

• The oil seal is easily damaged by the sharp edges of the drive shaft splines. Do not let the splines contact the oil seal.

7. Connect the front drive shaft (LH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

8. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL].)

9. Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

10. Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [FW6A-EL].)

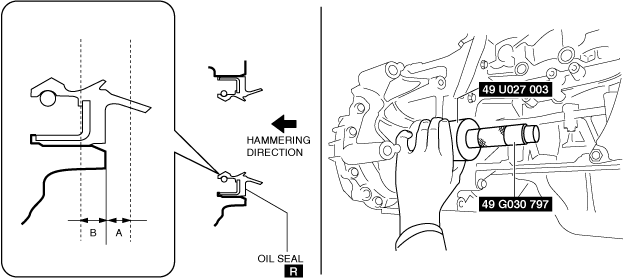

Converter Housing Side
