HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION [SKYACTIV-G 2.5]


id071100802738

Replacement Part

Clip

Quantity: 1

Location of use: Front heater hose No.1
Clip

Quantity: 1

Location of use: Front heater hose No.3
Clip

Quantity: 1

Location of use: Front heater hose No.4
Clip

Quantity: 2

Location of use: Front heater hose No.5
Clip

Quantity: 1

Location of use: Front heater hose No.6
Clip

Quantity: 1

Location of use: Rear heater hose No.1
Clip

Quantity: 1

Location of use: Rear heater hose No.2
-
-

Note

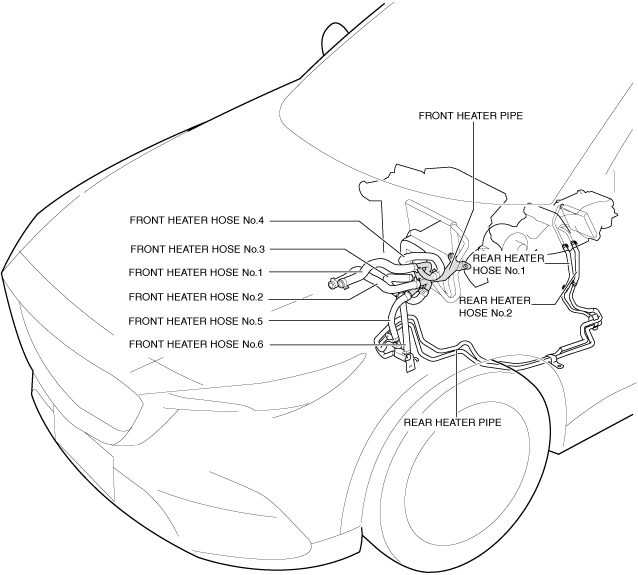

•  The heater pipe and hose component consists of the following parts.
ac8wzw00003384

Front Heater Hose No.1, No.2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5].)

3.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(2)  Battery (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(3)  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

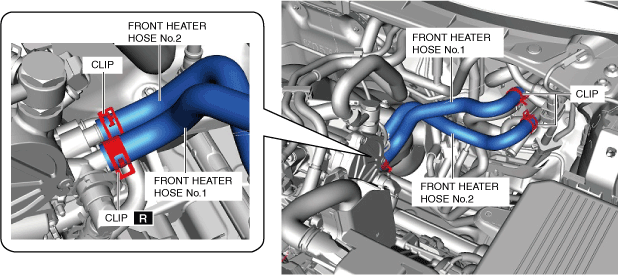

4.  Remove the front heater hose No.1.

ac8wzw00003385

5.  Remove the front heater hose No.2.

6.  Install in the reverse order of the removal.

7.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5].)


Front Heater Hose No.3, No.4

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5].)

3.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(2)  Battery (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(3)  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

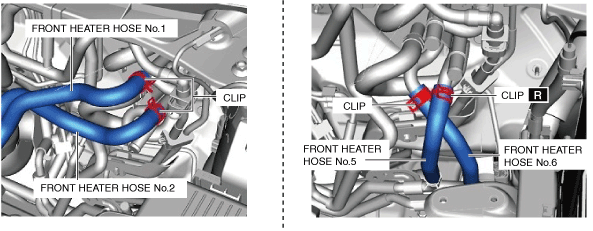

4.  Disconnect the front heater hose No.1.

ac8wzw00003386

5.  Disconnect the front heater hose No.2.

6.  Disconnect the front heater hose No.5.

7.  Disconnect the front heater hose No.6.

8.  Remove the nuts.

ac8wzw00003387

9.  Remove the heater pipe and hose component.

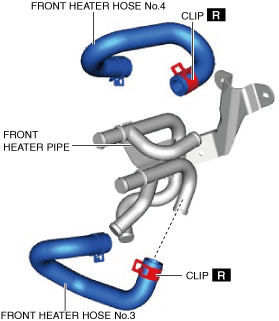

10.  Remove the front heater hose No.4.

ac8wzw00003388

11.  Remove the front heater hose No.3.

12.  Install in the reverse order of the removal.

13.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5].)


Front Heater Hose No.5, No.6

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5].)

3.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(2)  Battery (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(3)  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

4.  Remove the front heater hose No.5.

ac8wzw00003389

5.  Remove the front heater hose No.6.

6.  Install in the reverse order of the removal.

7.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5].)


Front Heater Pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5].)

3.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(2)  Battery (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(3)  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

4.  Disconnect the front heater hose No.1.

ac8wzw00003386

5.  Disconnect the front heater hose No.2.

6.  Disconnect the front heater hose No.5.

7.  Disconnect the front heater hose No.6.

8.  Remove the nuts.

ac8wzw00003387

9.  Remove the heater pipe and hose component.

10.  Remove the front heater hose No.4.

ac8wzw00003388

11.  Remove the front heater hose No.3.

12.  Remove the front heater pipe.

13.  Install in the reverse order of the removal.

14.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5].)


Rear Heater Hose No.1, No.2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5].)

3.  Remove the following parts:

(1)  Floor under cover No.2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
(2)  Floor under cover No.1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

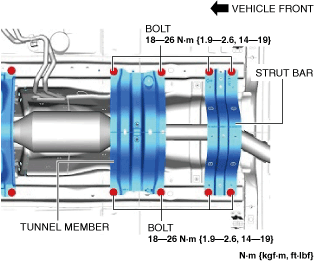

(3)  Tunnel member
ac8wzw00004387
(4)  Strut bar
(5)  Insulator (middle) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

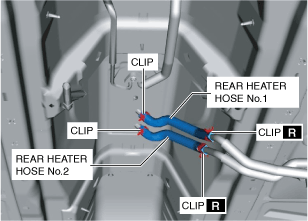

4.  Remove the rear heater hose No.1.

ac9uuw00008184

5.  Remove the rear heater hose No.2.

6.  Install in the reverse order of the removal.

7.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5].)


Rear Heater Pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5].)

3.  Remove the following parts:

(1)  Battery (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(2)  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(3)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
(4)  Floor under cover No.2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
(5)  Floor under cover No.1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
(6)  Insulator (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(7)  Brace bar

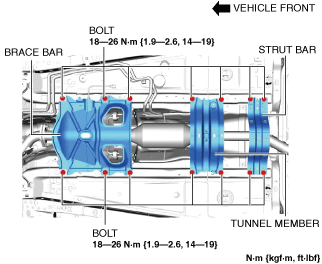

ac8wzw00004388
(8)  Tunnel member
(9)  Strut bar
(10)  Insulator (middle) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(11)  HO2S harness bracket
ac8wzw00004389

4.  Remove the TWC from the mount rubber.

ac8wzw00004390

5.  Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

6.  Suspend the TWC using a cable as shown in the figure.

ac8ccw00000238

7.  Remove the propeller shaft. (4WD) (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

8.  Remove the Insulator (front) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

9.  Disconnect the HO2S harness connector.

ac9uuw00008188

10.  Remove the bolt.

11.  Remove the bracket.

12.  Disconnect the front heater hose No.5.

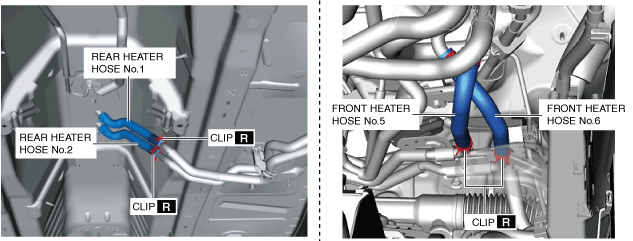

ac8wzw00003390

13.  Disconnect the front heater hose No.6.

14.  Disconnect the rear heater hose No.1.

15.  Disconnect the rear heater hose No.2.

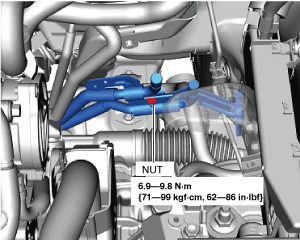

16.  Remove the nut.

ac8wzw00003391

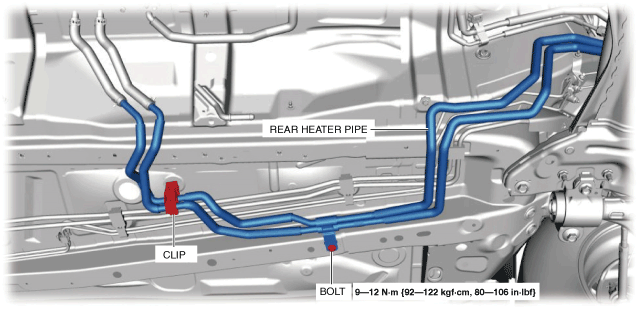

17.  Remove the bolt.

ac8ccw00000241

18.  Remove the rear heater pipe from the clip.

19.  Remove the rear heater pipe.

20.  Install in the reverse order of the removal.

21.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5].)
