AIR INTAKE ACTUATOR INSPECTION

id074000801500

1.  Set the air intake mode to RECIRCULATE.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

4.  Remove the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL.)

5.  Apply battery positive voltage and connect the ground to the air intake actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal	Ground Terminal	Operation
D	E	RECIRCULATE → FRESH
E	D	FRESH → RECIRCULATE

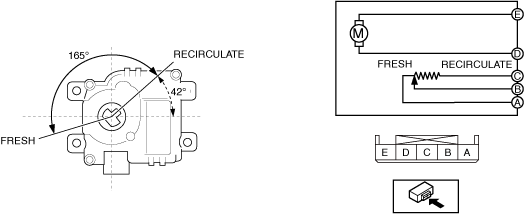

ac8wzw00004706

6.  Verify that the resistance between terminals A and B, B and C matches the air intake actuator operation as shown in the graph.

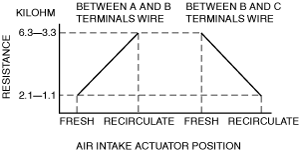

ac9wzw00004083

•  If the operation condition and resistance are not normal, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL.)(See AIR INTAKE ACTUATOR INSTALLATION.)
