FRONT AIRFLOW MODE ACTUATOR INSPECTION

id074000804500

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7) Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3. Remove the front airflow mode actuator. (See FRONT AIRFLOW MODE ACTUATOR REMOVAL.)

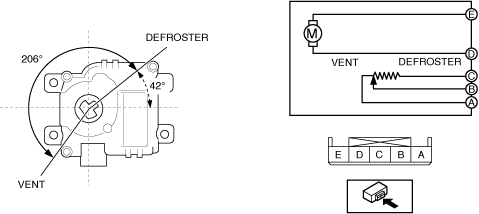

4. Apply battery positive voltage and connect the ground to the front airflow mode actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal

Ground Terminal

Operation

D

E

DEFROSTER → VENT

E

D

VENT → DEFROSTER

B+ Terminal	Ground Terminal	Operation
D	E	DEFROSTER → VENT
E	D	VENT → DEFROSTER

ac9wzw00004085

5. Verify that the resistance between terminals A and B, B and C matches the front airflow mode actuator operation as shown in the graph.

ac9wzw00004086

• If the operation condition and resistance are not normal, replace the front airflow mode actuator. (See FRONT AIRFLOW MODE ACTUATOR REMOVAL.)(See FRONT AIRFLOW MODE ACTUATOR INSTALLATION.)
