BONNET DISASSEMBLY/ASSEMBLY

id091000899800

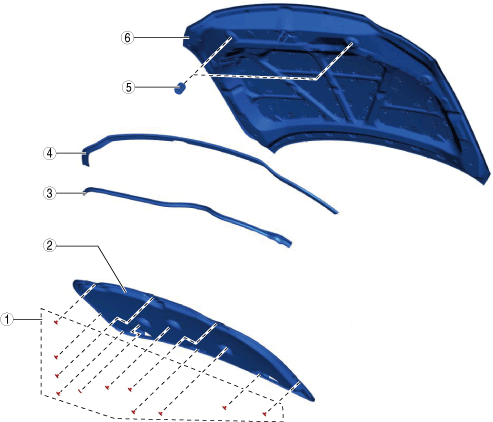

1.  Disassemble in the order shown in the figure.

ac8wzw00000896

1	Fastener
2	Bonnet insulator
3	Shroud seal weatherstrip
4	Parting seal weatherstrip
5	Stopper rubber
6	Bonnet

2.  Assemble in the reverse order of disassembly.
