POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION

id091200002200

Front

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

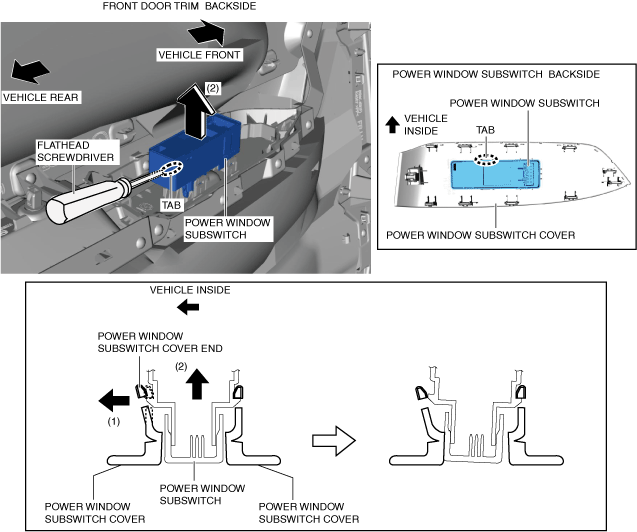

3. Using a flathead screwdriver, move the power window subswitch cover end in the direction of arrow (1) shown in the figure, move the power window subswitch in the direction of arrow (2) while moving the position of the power window subswitch cover end, and detach the tabs shown in the figure from the power window subswitch cover.

ac8wzw00000917

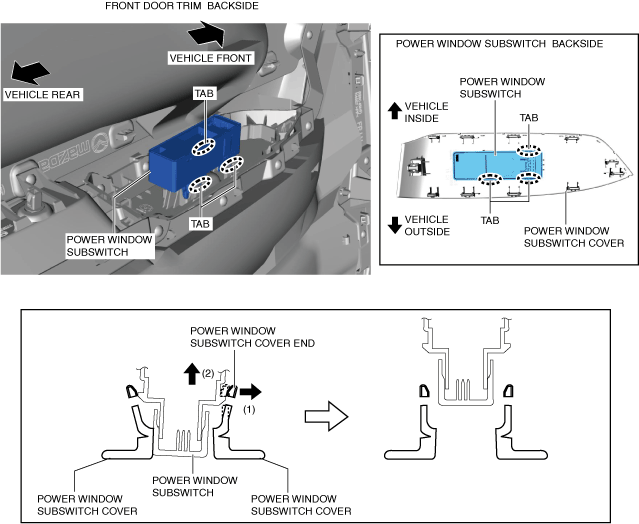

4. Using a flathead screwdriver, move the power window subswitch cover end in the direction of arrow (1) shown in the figure, move the power window subswitch in the direction of arrow (2) while moving the position of the power window subswitch cover end, and detach the tabs shown in the figure from the power window subswitch cover.

ac8wzw00000918

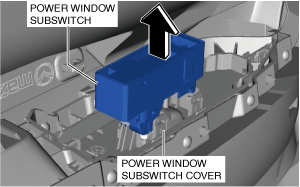

5. Move the power window subswitch in the direction of the arrow shown in the figure and remove the power window subswitch from the power window subswitch cover.

ac8wzw00000919

6. Install in the reverse order of removal.

Rear

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

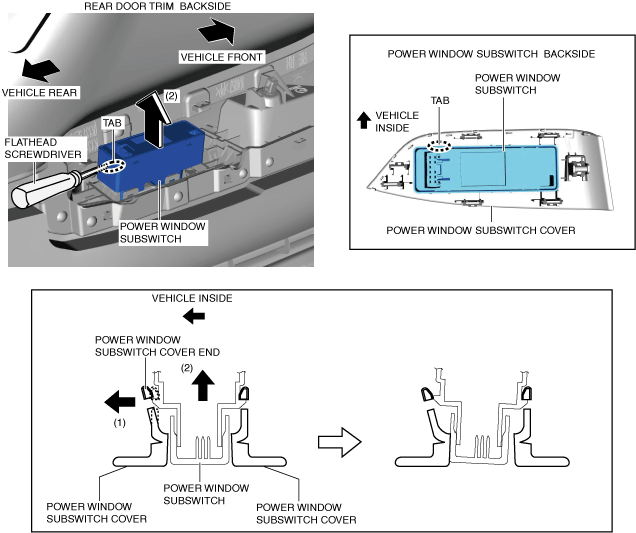

ac8wzw00000920

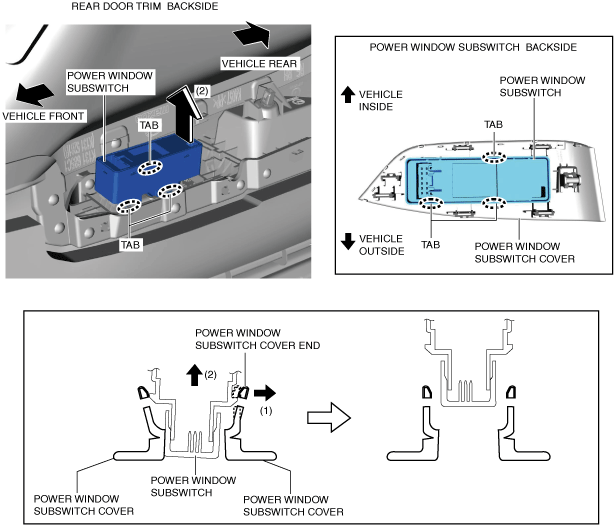

ac8wzw00000921

5. Move the power window subswitch in the direction of the arrow shown in the figure and remove the power window subswitch from the power window subswitch cover.

ac8wzw00000922

6. Install in the reverse order of removal.
