AUTO-DIMMING REARVIEW MIRROR INSPECTION

id091200016100

Operational inspection

1.  Switch the ignition ON (engine off or on).

2.  Move the vehicle to a place with a showroom level of brightness.

3.  Verify that the mirror surface brightens.

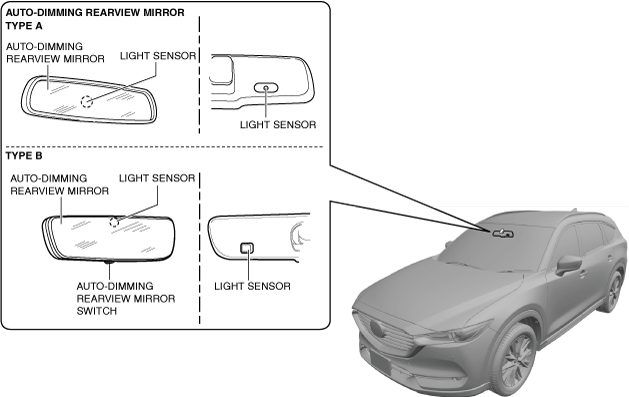

ac8wzw00003293

4.  Cover the front light sensor with a hand and verify that the mirror surface darkens when light is shone on the rear light sensor.

5.  Remove your hand covering the front light sensor and verify that the mirror surface brightens.

•  If the auto-dimming mirror does not operate, inspect the terminal voltage. (See Terminal Voltage Table (Reference).)

Terminal Voltage Table (Reference)

1.  Measure the voltage at each terminal.

•  If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under “Inspection item (s)”.

―  If the system does not work properly even though the inspection items do not have any malfunction, replace the auto-dimming rearview mirror.

ac8wzw00001182

Terminal	Signal name	Connected to	Measured condition	Voltage (V)	Inspection item(s)
A	—	—	—	—	—
B	—	—	—	—	—
C	—	—	—	—	—
D	—	—	—	—	—
E	—	—	—	—	—
F	—	—	—	—	—
G	—	—	—	—	—
H	—	—	—	—	—
I	GND	Body ground	Under any condition	1.0 or less	•  Related wiring harnesses
J	—	—	—	—	—
K	—	—	—	—	—
L	—	—	—	—	—
M	—	—	—	—	—
N	—	—	—	—	—
O	Power supply (IG1)	C/U IG1 15A fuse	Switch the ignition ON (engine on or off)	B+	•  C/U IG1 15A fuse •  Related wiring harnesses
			Switch the ignition OFF (LOCK)	1.0 or less
P	R position signal	Rear body control module (RBCM)	R position	B+	•  Rear body control module (RBCM) •  Related wiring harnesses
			Other than R position	1.0 or less
