SENSOR COVER REMOVAL/INSTALLATION

id091200025000

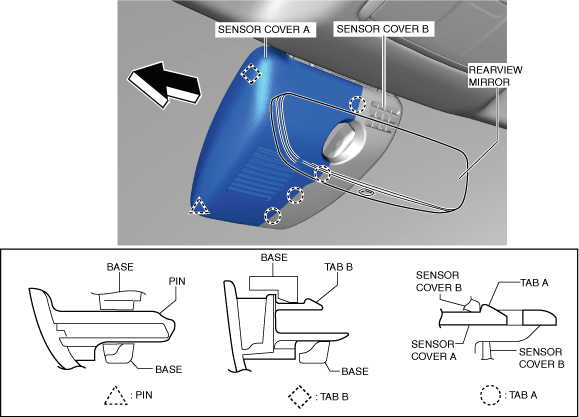

1.  Pull sensor cover A in the direction of the arrow shown in the figure, detach tabs A, B and pin, and remove sensor cover A from the base.

ac8wzw00003298

2.  Pull sensor cover B in the direction of the arrow shown in the figure, detach the pin and tab, and remove sensor cover B from the base.

ac8wzw00003299

3.  Install in the reverse order of removal.
