SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE

id091400112900

Type-A

Caution

•  The personalization feature may not be set correctly if [Not Adopted.] or [Not equipped] is selected in the setting displayed on the M-MDS. Do not select [Not Adopted.] or [Not equipped] in the setting displayed on the M-MDS.

Note

•  Settings of some personalization features displayed on the M-MDS cannot be switched depending on the vehicle specification.

Advanced Keyless Entry System

Using M-MDS

1.  Connect the M-MDS to DLC-2.

2.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

1.  Select the “Module Programming”.

2.  Select “Programmable Parameters”.

3.  Select menu in the SSU.

4.  Select an item name, and then select option.

M-MDS display	Function	Initial setting	Setting contents	Control unit
Advanced keyless function.*1	The advanced keyless entry system and push button start system functions can be disabled.	Enabled.	Enabled. / Disabled.	Start stop unit
Walk Away Lock.	The out-of-area (reception area) type auto lock function can be set.	OFF	OFF / ON	Start stop unit
Auto Relock Time.	The operation start time of the auto re-lock function can be changed.	30 seconds	30 seconds / 60 seconds / 90 seconds	Start stop unit
Keyless Lock Beep Volume.	The keyless beeper volume can be adjusted.	Medium	Off / Low / Medium / High	Start stop unit

Setting method by operation of remote transmitter button

•  The following setting can be changed by operation of the remote transmitter button.

M-MDS display	Function	Initial setting	Setting content	Control unit
Keyless Lock Beep Volume.	The keyless beeper volume can be adjusted.	Medium	Off / Low / Medium / High	Start stop unit

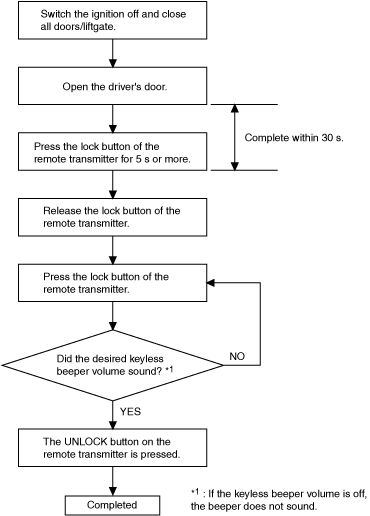

•  Change the setting for the keyless beeper volume referring to the following procedure:

Note

•  If any of the following conditions is met during procedure, the setting for changing the keyless beeper volume is finished.

―  The ignition is switched to ACC or ON (engine off or on).

―  The driver's door is closed.

―  The liftgate is open.

―  The remote transmitter operation is not performed for approx. 10 s.

―  The UNLOCK button on the remote transmitter is pressed.

―  A request switch is pressed.

am3zzw00014027

Using center display

•  (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)

Keyless Entry System

Using M-MDS

1.  Connect the M-MDS to DLC-2.

2.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

1.  Select the “Module Programming”.

2.  Select “Programmable Parameters”.

3.  Select menu in the SSU.

4.  Select an item name, and then select option.

M-MDS display	Function	Initial setting	Setting contents	Control unit
Auto Relock Time.	The operation start time of the auto re-lock function can be changed.	30 seconds	30 seconds / 60 seconds / 90 seconds	Start stop unit

Using center display

•  (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)

Power Saving Function

•  After you have turned on the power saving function according to the following procedure, the hazard warning lights and sound operate^*1 one time.

―  Press the lock button on the transmitter 4 times within 3 seconds to turn on the operation indicator light.

―  Press the lock button continuously for 1.5 seconds or longer while the operation indicator light turns on (for 5 seconds).

―  Press any of the buttons on the transmitter to make sure that the operation indicator light does not turn on/flash.

•  After you have turned off the power saving function according to the following procedure, the hazard warning lights and sound operate^*1 one time.

―  Press any of the buttons on the transmitter to make sure that the operation indicator light does not turn on/flash.

―  Press the lock button on the transmitter 4 times within 3 seconds to turn on the operation indicator light.

―  Press the lock button continuously for 1.5 seconds or longer while the operation indicator light turns on (for 5 seconds).

Type-B

Note

•  Refer to the [PERSONALIZATION FEATURES [(TYPE-B)]] in the workshop manual.

Power Saving Function

•  After you have turned on the power saving function according to the following procedure, the hazard warning lights and sound operate^*1 one time.

―  Press the lock button on the transmitter 4 times within 3 seconds to turn on the operation indicator light.

―  Press the lock button continuously for 1.5 seconds or longer while the operation indicator light turns on (for 5 seconds).

―  Press any of the buttons on the transmitter to make sure that the operation indicator light does not turn on/flash.

•  After you have turned off the power saving function according to the following procedure, the hazard warning lights and sound operate^*1 one time.

―  Press any of the buttons on the transmitter to make sure that the operation indicator light does not turn on/flash.

―  Press the lock button on the transmitter 4 times within 3 seconds to turn on the operation indicator light.

―  Press the lock button continuously for 1.5 seconds or longer while the operation indicator light turns on (for 5 seconds).
