CENTER MAP LIGHT

id091800015900


Purpose

•  The center map light illuminates the center of the vehicle interior.

Function

•  When the center map light switch is on or the room light switch for the front map light is in the ON position, the center map lights turn on.
•  The center map light turns on according to the lock condition of the driver's door and open/close conditions of the doors under the rear body control module (RBCM) control when the room light switch for front map light is in the DOOR position. (Map Light Switch Integrated Type)
•  The center map lights turn on according to the lock condition of the driver's door and open/closed conditions of the doors under the rear body control module (RBCM) control when the room light door open interlock switch for the front map light is turned on. (Map Light Switch Independent Type)

Structure/Construction

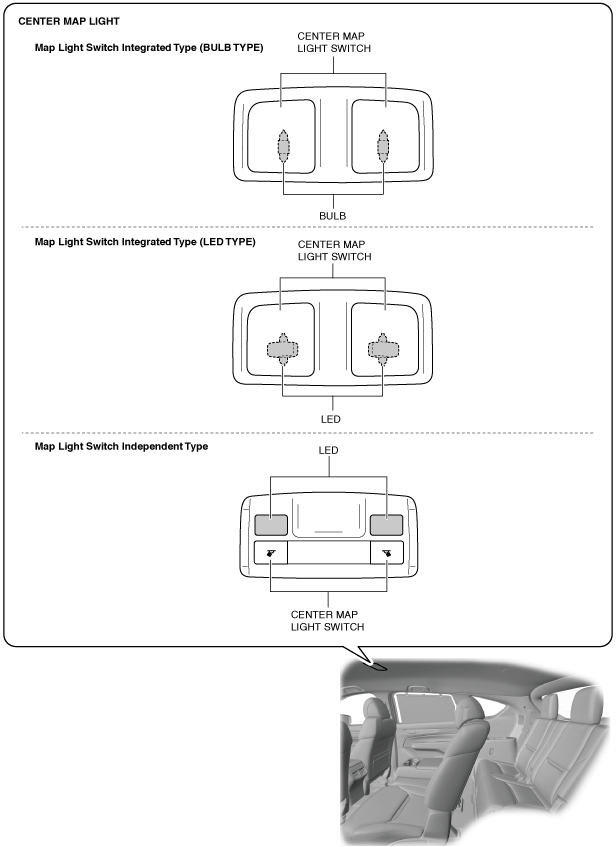

•  A bulb type or LED type is available for the center map lights.
•  The center map light is positioned in the center part of the headliner.
ac8wzn00001529

Operation

Note
•  When the rear body control module (RBCM) receives a lock signal on the remote transmitter with the ignition switched off and all doors/ liftgate closed, it automatically turns the center map light off.

Map Light Switch Integrated Type


Center map light switch operation

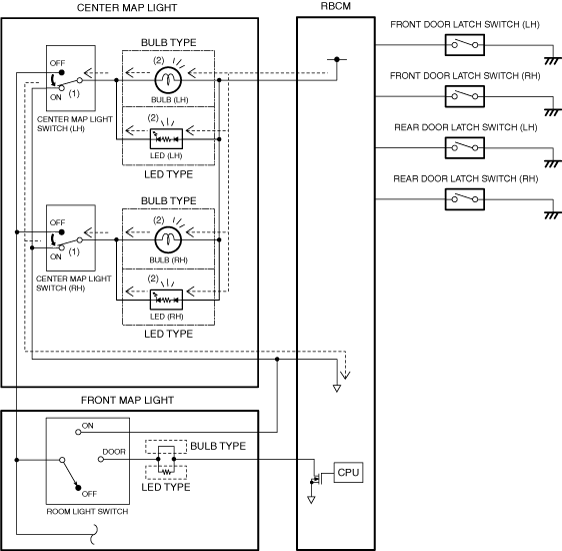

1.  When the center map light switch (LH/RH) is on (1), the center map light (LH/RH) turns on (2).

ac8wzn00001530


Room light switch for front map light operation (ON position)

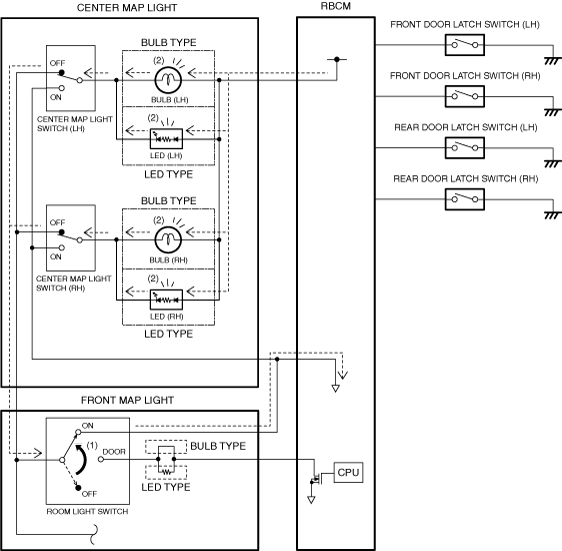

1.  When the interior light switch for the front map light is turned on (1), the center map light turns on (2).

ac8wzn00001531


Room light switch for front map light operation (DOOR position)

Note
•  For the operation conditions, refer to the [ROOM LIGHT CONTROL SYSTEM]. (See ROOM LIGHT CONTROL SYSTEM.)


Fail-safe

•  Not applicable

Map Light Switch Independent Type


Center map light switch operation

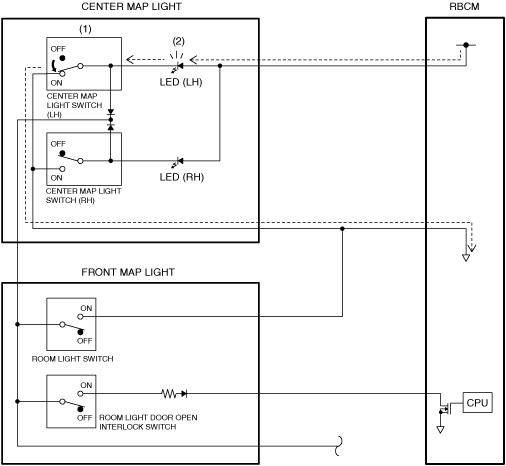

1.  When the center map light switch (LH/RH) is turned on (1), the center map light (LH/RH) turns on (2).

ac8wzn00001533


Room light switch for front map lights operation

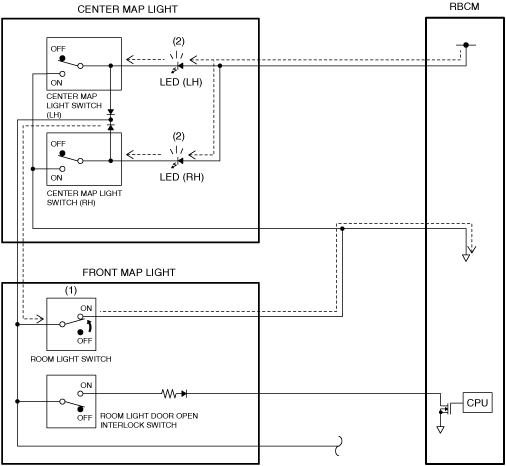

1.  When the room light switch for the front map light is turned on (1), the center map light turns on (2).

ac8wzn00001534


Room light door open interlock switch for front map light operation

Note
•  For the operation conditions, refer to the [ROOM LIGHT CONTROL SYSTEM]. (See ROOM LIGHT CONTROL SYSTEM.)


Fail-safe

•  Not applicable
